EELECTRON DM01D01ACC UNIVERSAL DIN DIMMER SLAVE 1 OUT - 700W

EELECTRON DM01D01ACC Product Description

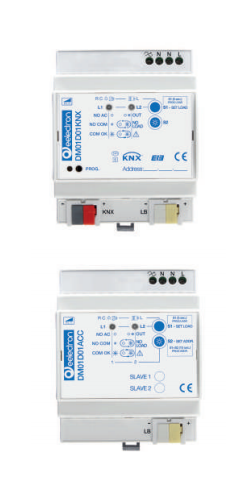

The DM01D01ACC module is a Slave module compatible with the KNX DM01D01KNX universal dimmer. This module is designed to be connected to the DM01D01KNX Master dimmer, allowing you to extend lighting control functionality.

Key Features

The DM01D01ACC module has characteristics identical to those of the DM01D01KNX Master dimmer, allowing you to manage resistive, capacitive or inductive loads.

Dimming Types

• Trailing Edge: The dimmer cuts off the final part of the input voltage wave, reducing the lamp's output. This load regulation is used for resistive or capacitive loads, such as halogen lamps with electronic transformers or incandescent lamps.
• Leading Edge: The dimmer cuts off the initial part of the input voltage wave, reducing the lamp's output. This load regulation is used for inductive loads, such as ferromagnetic or toroidal transformers.

Installation and Connection

The DM01D01ACC module is designed for DIN rail installation in electrical distribution cabinets. It is connected to the DM01D01KNX Master dimmer through a local two-wire bus.

Functionality

• The module can operate in three-phase systems, respecting the 230Vac limit between phase and neutral.
• Up to two Slave modules can be connected to the Master dimmer, expanding lighting control capabilities.

This module is ideal for applications that require precise and flexible lighting management, especially in environments where accurate control of electrical loads is necessary.
