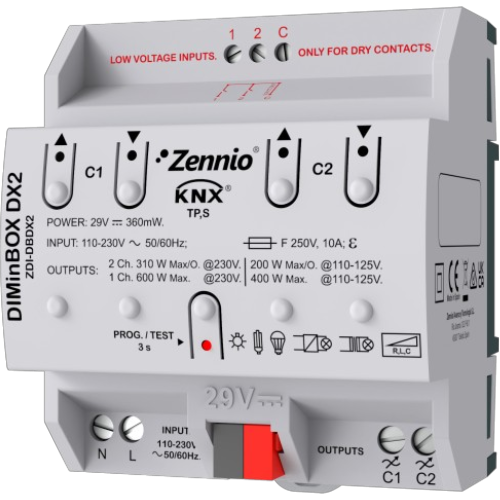

ZENNIO ZDI-DBDX2 DimBox DX2 - Universal dimmable actuator (RLC, LED, CFL) for DIN rail

The ZENNIO DimBox DX2 is a universal adjustment actuator designed to be mounted on a DIN rail, occupying 4.5 units. This device supports dimmable RLC, LED, and CFL loads.

Key Features

The DimBox DX2 offers two control channels, each capable of managing up to 310 W, or a single channel for loads up to 600 W at 230 VAC. At 110-125 VAC, channels can handle up to 200 W each or a single channel up to 400 W.

Load Sensing and Adjustment

This actuator has an automatic detection function for the type of RLC load and frequency, ensuring optimal adjustment for the different types of lamps. In addition, it allows the configuration of customized adjustment curves for LEDs and CFL.

Manual Control and Logical Functionality

The DimBox DX2 includes buttons on the lid for manual control of outputs. In addition, it has 10 independent logic functions and two analog-digital inputs that can be configured as binary inputs for sensors and buttons with free potential, inputs for temperature probes or motion sensors.

Error Detection

• Short circuit
• Overvoltage
• Thermal overload
• Abnormal frequency
• Power failure
• Parametrization error

accessories

The DimBox DX2 can be used with accessories such as temperature probes and motion sensors.

Compatibility with Automation Systems

This actuator is compatible with ETS5/ETS6 automation systems, requiring an update to the most recent version to import the product.
