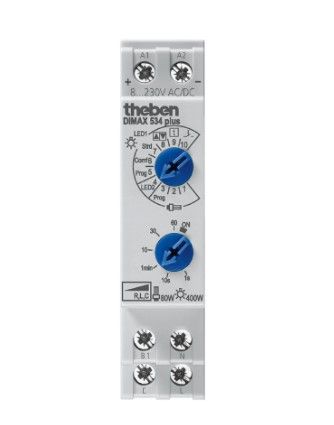

THEBEN 5340001 DIMAX 534 plus

Function Description

• Universal dimmer for R, L and C loads with automatic load recognition
• Comfort setting with alarm and snooze function (can also be deactivated), e.g. for kids' rooms
• Adjustable regulation speed (in automatic functions)
• First and second press of the button for even easier use
• Up to 3 light scenes recallable from a separate input (a diode module is required to obtain more than one light scene)
• Centralized ON/OFF or scene lighting for max. 10 devices that can be set with a button
• Function Staircase light with function
• Dimming according to DIN 18015 - 2 (can be switched downstream, timer function)
• Controlled via buttons or switches e.g. for combination with presence detector or time switch
• Possibility of individual saving of the switching lamp
• Minimum brightness that can be set (necessary for LRE and LED)
• Multivoltage input, e.g. for intercom systems
• Reduced standby usage
• Memory function in case of power failure
• Automatic and electronic overload and overtemperature cut-out
• Brightness adjustment function and switching function
• Permanent ON function (test function)
• There is no minimum load required
• ON soft and OFF soft protect the lighting medium
• When using the DMB 1 T KNX regulation booster, the power can be expanded to 300 W
