EKINEX EK-TM1-TP Digital time/astronomical switch

Digital time/astronomical switch

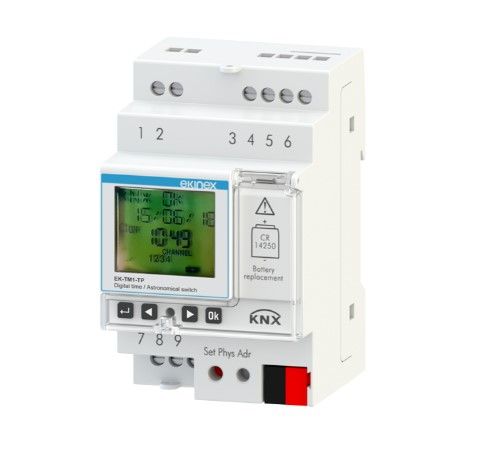

The Ekinex® EK-TM1-TP digital electronic clock is a KNX device for the timed management of electrical utilities. It allows hourly programming (periodicity: daily, weekly or yearly) or astronomical. The device is able to drive 9 different channels on the KNX bus. Channel 1 programming is also replicated on the relay located on the device. Each channel can be associated with a different programming (hourly or astronomical). It is possible to connect via bus the EK-GPS-1 module (to be ordered separately) which allows the automatic acquisition of the time and position through the satellite system. The backup battery allows you to keep the settings even in the event of a blackout and can be replaced through the cover (sealable).
