FAAC 105630445 DELTA3 KIT 230V SAFE Sliding Door Gate Automation

DELTA3 KIT 230V SAFE Sliding Door Gate Automation

Max door weight 900 Kg Max speed 12 m/min.

Complete kit for the automation of sliding gates. 230V gearmotor for sliding gates weighing up to 900 kg, practical and very robust, with a knob emergency unlocking system with personalized key and magnetic shutters. Including a safety encoder, in the event of an obstacle, the gate reverses the maneuver. 740D control unit, installed inside the motor in a plastic protective box, with slowdown in both maneuvers and quick coupling for 5-pin Molex receivers.

Technical characteristics Model 741 E Z16 with encoder Network supply voltage 220-240V~ 50/60 Hz Single-phase asynchronous electric motor Maximum power 500 W Max torque 24 Nm (*) Maximum thrust force 650 N (*) Reduction ratio 1:25 Max door width 15 m Sash speed 12 m/min Speed adjustment and motor control No Finetravel Magnetic Pinion Z16 module 4 Optical encoder Force adjustment Using electronic board Ambient operating temperature -20°C ÷ +55°C Heat protection 140°C Degree of protection IP44 Weight 11 Kg Dimensions (LxDxH) 295 x 181 x 320 mm Maximum door weight 900 Kg Frequency of use S3 — 30% Built-in 740D electronic equipment

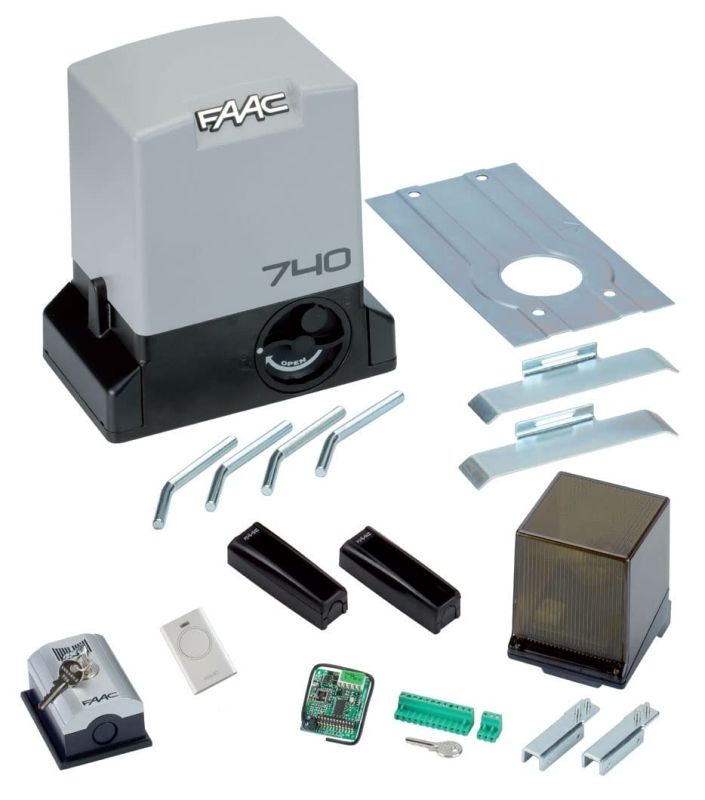

The package includes: 1 FAAC 741 E Z16 gearmotor with built-in electronic equipment and encoders 1097815 1 740D 202269 electronic board 1 63003319 ground mounting plate 1 63001035 magnetic fine-stroke unit opening and closing 1 Pair of XP 20D 785102 photocells 1 XLED 410029 flashing light 1 XK10 401302 outdoor key selector + 71275101 1 RP 433 SLH 787852 single-channel remote control XT2 433 SLH 7007 1 FAAC warning monitor sign 1 Safety certifications, instructions and user and maintenance manual
