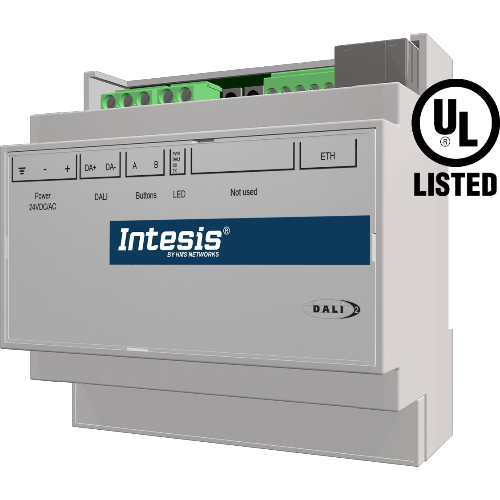

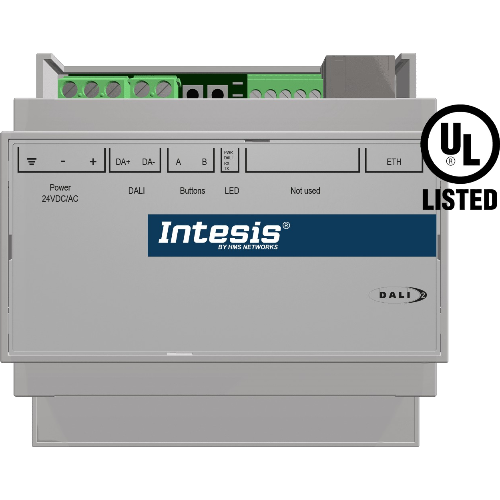

INTESIS INMBSDAL0640500 DALI-2 server gateway to Modbus TCP - 1 channel

<p/the Inthesis INMBSDAL0640500 product is a bidirectional gateway designed for the integration of DALI/DALI-2 devices with Modbus TCP-based control systems. This gateway supports a DALI channel with an integrated power supply for the DALI bus, thus eliminating the need for an external power supply.

Key Features

The INMBSDAL0640500 gateway allows you to integrate up to 64 DALI drivers/ballasts and 64 DALI-2 input devices, such as occupancy sensors, light sensors and buttons.

Device Support

• Support for 64 DALI device addresses (driver/ballast) and 64 DALI-2 input device addresses (sensors, buttons, absolute inputs).
• Compatibility with DALI/DALI-2 drivers and DALI-2 occupancy and light sensors.

Modbus TCP Interface

The gateway supports up to six simultaneous Modbus TCP clients and offers Modbus functions such as reading and writing holding and input registers.

• Support for Modbus functions 03, 04, 06 and 16 (Read Holding Registers, Read Input Registers, Write Holding Register, Write Multiple Holding Registers).

Nutrition and Performance

The DALI bus power supply is integrated into the gateway, with an operating voltage between 14 V and 17 V (typically 16 V) and a guaranteed current of 230 mA per line, with a maximum of 250 mA.

• Operating voltage: 14 V - 17 V (typically 16 V).
• Guaranteed current per line: 230 mA.
• Maximum current per line: 250 mA.
• Start time: 1500 ms.
• Shutdown time: 7 seconds.
• Data transfer rate: 1200 baud.

Configuration and Use

The configuration and commission of the gateway are managed through the Inthesis MAPS configuration tool, which allows you to create projects with predefined templates, configure the necessary parameters and verify the communication between the gateway and the system.

• Use the Inthesis MAPS configuration tool to simplify the integration process.
• Support for up to 10,000 defined signals in total.
