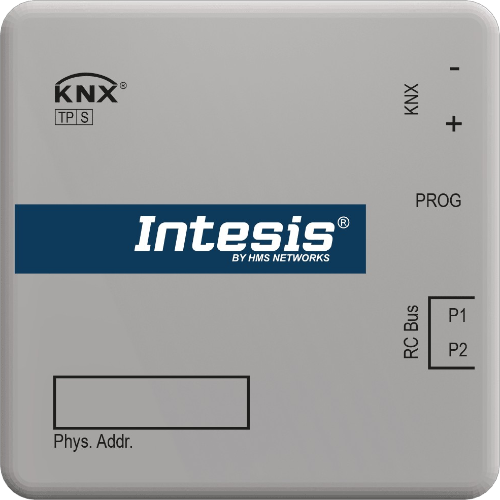

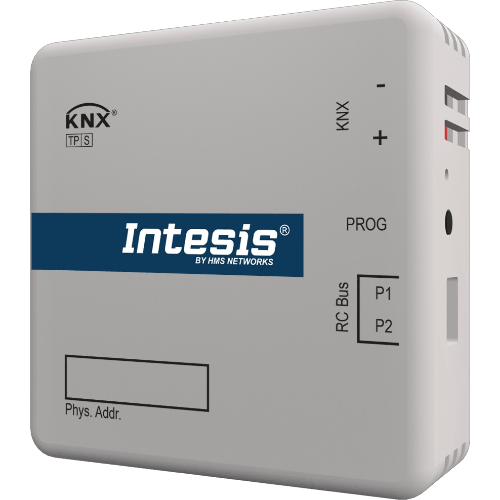

INTESIS INKNXDAI001R000 Daikin VRV and Sky systems at the KNX interface - 1 unit

The INTESIS INKNXDAI001R000 gateway is a device designed to ensure bidirectional communication between Daikin VRV and Sky air conditioning systems and KNX installations.

Key Features

This gateway allows you to control and monitor the main functions of air conditioning systems, such as the operating mode, the fan speed, the temperature setpoint, as well as to monitor errors, alarms and some internal variables.

Configuration and Integration

<p-The gateway is configured using the standard KNX ETS configuration tool. This makes integration with any KNX thermostat available on the market particularly simple and efficient.

Control Features

• Control of the air conditioning unit via the KNX thermostat temperature sensor.
• Simultaneous control of the air conditioning unit using the IR remote control and the KNX system.
• Complete control and monitoring of the air conditioning unit from the BACnet system, including the operating hours counter (for checking the maintenance of the filters) and the indication of errors.
• Up to five scenes are possible that can be saved and executed by KNX.

Technical Specifications

The gateway is powered directly from the KNX bus, without the need for an external power source.

• Dimensions: 71 x 71 x 27 mm.
• Weight: 70 g.
• Housing material: ABS plastic (UL 94 V-0) with a thickness of 2.5 mm.
• Color: White, RAL 9010.
• Power supply: 29 VDC, 7 mA.
• Current on the P1P2 bus: 45 mA.
• LED indicators: 1 for KNX programming.
• Buttons: 1 for KNX programming.
• Operating temperature: -25°C to 60°C.
• Storage temperature: -40°C to 85°C.
• Insulation voltage: 2500 V.
• Insulation resistance: 1000 MΩ.
