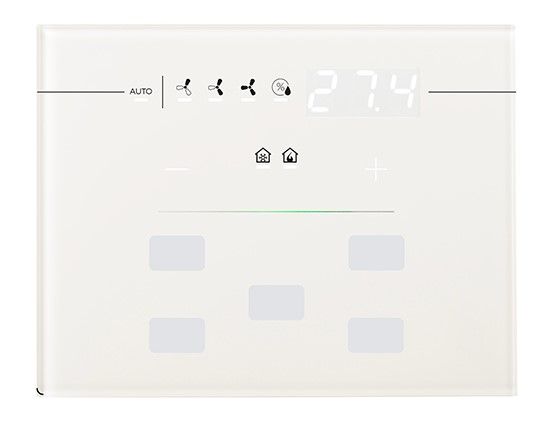

EELECTRON 9025GT307W01-H LINE SERIES CUSTOM GLASS - RGB - HOTEL DISPLAY - WHITE

MT Code: ELC_9025GT307W01-H
Manufacturer Code: 9025GT307W01-H
Brand: EELECTRON

<p_The 9025GT307W01-H Thermostat from EELECTRON LINE SERIES is a highly versatile and configurable KNX® temperature and humidity controller. This device is designed to be installed in a 3-module box and is compatible with major international standards, including British, German and Italian standards.

Key Features

The thermostat includes 7 configurable capacitive buttons, allowing the management of various commands such as on/off, dimmers, shutters and blinds, as well as the ability to execute and learn scenarios and sequences of objects.

Temperature and Humidity Control

The device is equipped with a 2-stage thermostat with an integrated PI controller, ideal for controlling heating and cooling appliances, valves and 2- and 4-pipe fan coils. In addition, it has an integrated temperature and relative humidity sensor, which can be used to control actuators for the regulation of ambient humidity.

Sensors and Connections

The thermostat includes an on-board temperature probe and a rear input that can be configured as digital or analog. It is possible to connect an additional NTC probe (eelectron code TS01A01ACC or TS01B01ACC) to obtain a second temperature measurement.

Visualization and Feedback

The RGB LED bar on the front side displays the operating states of the thermostat and other quantities available on the KNX bus, providing immediate and intuitive feedback.

Covers and Customization

The glass covers are available in versions for hotel or residential applications and can be customized with interchangeable and backlit icons, associated with the configured functions.
