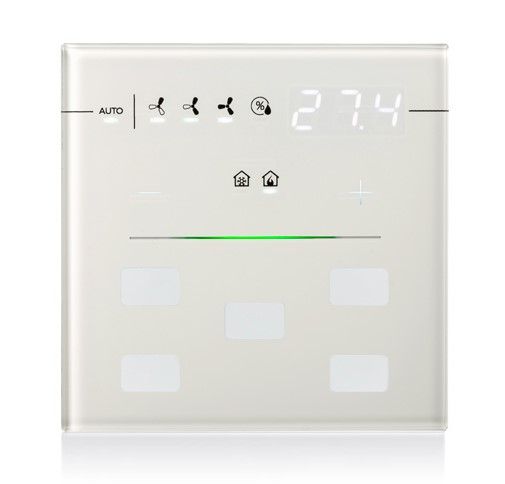

EELECTRON 9025GT07W01-H LINE SERIES CUSTOM GLASS - RGB - HOTEL DISPLAY - WHITE

The EELECTRON 9025GT07W01-H product is a KNX® capacitive thermostat intended for temperature control in residential and hotel environments. This device is characterized by 7 configurable capacitive buttons, allowing the management of various commands such as on/off, brightness adjustment, control of shutters and blinds, recall and control of scenarios, sequences of objects and local thermostat commands.

Technical characteristics

The 9025GT07W01-H thermostat includes a 2-stage thermostat with an integrated PI controller, ideal for controlling heating and cooling appliances, valves and 2- and 4-pipe fan coils.

Sensors and Connections

The device is equipped with an integrated temperature sensor and a 2-pin rear connector that can be configured as a digital or analog input. It is possible to connect an additional NTC temperature probe (eelectron codes TS01A01ACC or TS01B01ACC) to obtain a second temperature measurement.

Version with Humidity Sensor

A version of the thermostat with integrated temperature and relative humidity sensor is available, which can be used to control actuators for the regulation of ambient humidity.

Visualization and Interface

The device includes an RGB LED bar on the front side to display operating states or other quantities available on the KNX bus.

Glass Covers

The glass covers are available in versions for hotel or residential applications and can be customized with interchangeable backlit icons, associated with the configured functions.

Compatibility and Installation

The 9025GT07W01-H thermostat can be installed in boxes of 2 or 3 modules and is compatible with the main standards (Italian, German, English, etc.). The device is equipped with the KNX communication interface.
