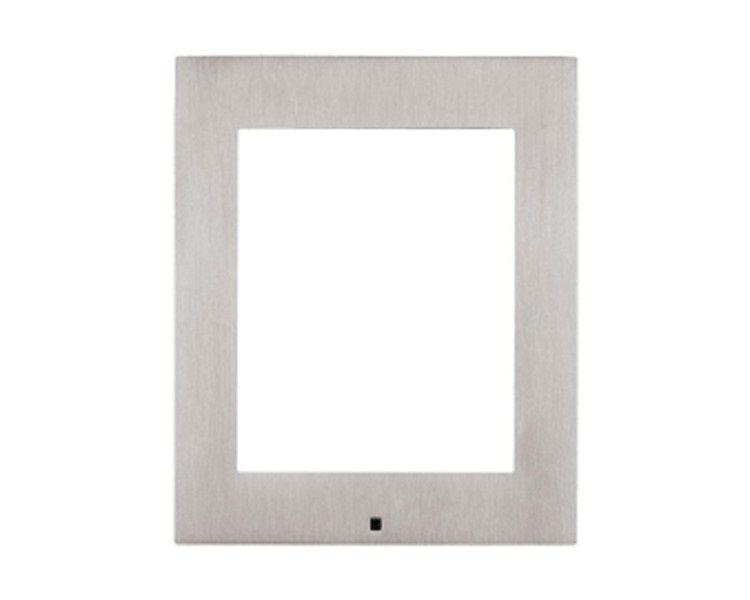

2N 9155021 1M cover box - surface installation frame for 1 m.

The 2N 9155021 mounting frame is designed for surface or recessed installation of IP Verso intercom modules. This product offers an efficient and practical solution for integrating intercom and access control systems.

Key Features

The frame is made of sturdy galvanized material with a nickel and black finish, ensuring long life and resistance to environmental conditions.

Dimensions and Assembly

The dimensions of the surface mount frame for 1 module are 107 mm (width) x 130 mm (height) x 28 mm (depth). For flush mounting, the minimum hole size required is 108 mm (width) x 131 mm (height) x 45 mm (depth).

Environmental Resistance

The frame is designed to operate in a temperature range from -40°C to +60°C and can withstand a relative humidity of 10%-95% (non-condensing). The storage temperature ranges from -40°C to +70°C.

Protection Classification

The frame has an IP54 and IK08 protection rating, ensuring effective protection against dust and water, as well as shock resistance.

Modularity

The frame accepts 1 additional Verso module, offering flexibility in configuring the intercom and access control system.

Other Features

• Weight: 2 kg
• Finish: Nickel and black
• Compatibility with various add-on function modules

This product is ideal for professionals who require a reliable and versatile solution for their intercom and access control systems.
