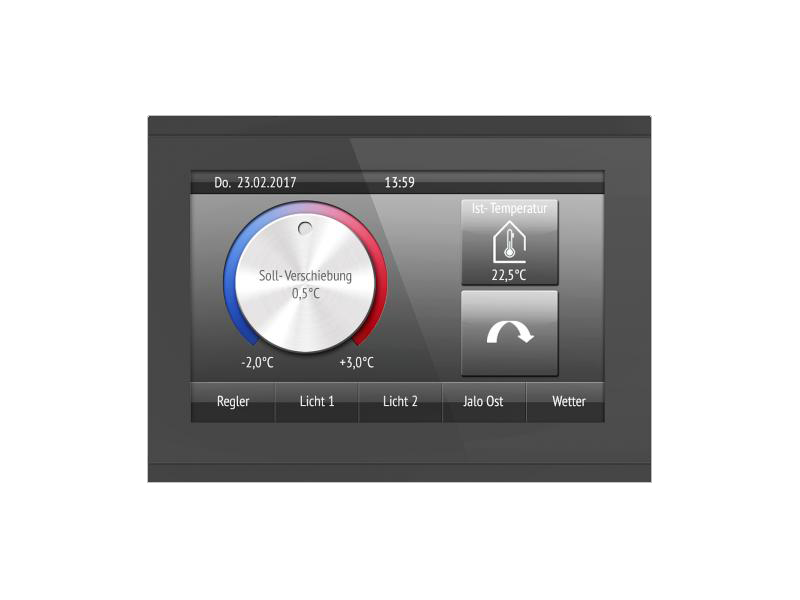

ELSNER 70475 Corlo Touch KNX 5in WL- black/black 5-inch KNX Touch display with Wi-Fi communication

The Corlo Touch KNX 5in WL display, code 70475, is a room control device for the KNX system, designed to manage various aspects of home and building automation in an integrated way.

Key Features

This device has a touch-sensitive glass interface, ideal for use as a normal switch, as well as offering a wide range of functionality.

Display and Interface

The 5-inch (800 x 480 pixel) high-resolution display is ideal for displaying text, images, or graphics. Visibility is guaranteed by a wide viewing angle (-70° to +70° on the x-axis and -60° to +60° on the y-axis).

Control Functionality

• Lighting management: possibility of switching on, brightness adjustment and color light control (RGB).
• Curtain and blind control: adjust the movement and position of curtains and blinds.
• Heating and air conditioning control: temperature control and heating/cooling mode.
• Ventilation management: control of windows and ventilation systems.

Advanced Features

• Scene control: up to 16 configurable scenes.
• Timer and alarm: timer and alarm programming.
• Logic Gates: 4 AND logic gates and 4 OR logic gates, each with 4 inputs.
• Binary inputs and temperature sensors: 4 inputs for binary contacts or temperature sensors.

Connectivity and Accessories

The Corlo Touch KNX 5in WL model includes a WLAN connection for wireless data transfer over the local network. You can view predefined web pages, images from IP cameras, and other visualizations using the WLAN connection.

• Micro SD card slot for storing image data.
• Integrated proximity sensor for quick activation of the display from standby mode.
• Integrated brightness sensor for automatic adjustment of display lighting.

Installation and Physical Characteristics

The display unit is made of tempered glass and plastic, weighing about 210 grams. The overall size of the unit is 133 x 97 x 35 mm, with a mounting depth of approximately 20 mm. The installation is carried out by means of recessed mounting in a Ø 60 mm junction box.

Operating Environment

The device operates in a temperature range from 0°C to +50°C and can be stored in a range from -10°C to +50°C, with a maximum relative humidity of 95% without condensation.
