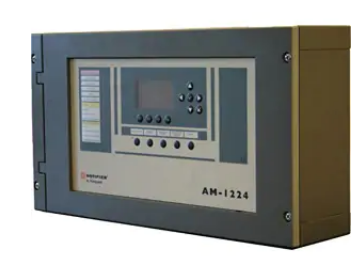

NOTIFIER AM12-24 CENTRAL 12 EXPANDABLE ZONES

Conventional fire detection panel with 12 zones. Expandable to 24 zones by means of an additional SK12Z-AM card. Each line allows the connection of a maximum of 25 detectors. It can have an optional board with 16 programmable outputs (8 relays and 8 open collectors) SK8/8AM. The outputs can be activated by means of command equations (CBE) with logical operators. Backlit liquid crystal display with 8 rows of 20 columns. Possible programming of text by 16-character zone and also by plant name. Historical archive of 500 events. Real-time clock. Three levels of passwords. Keyboard with multifunction controls for programming or programmable via PC. Programmable timings as well as the inhibition of silence. Relay outputs for alarm and fault and a controlled output. 230Vac mains power supply. Operating voltage from 17 to 26Vcc. 2.4A power adapter. Auxiliary current 24Vcc of 1A. A resettable power output is also available. Certified in accordance with EN 54-2 and EN 54-4. Dimensions. 482mm x 266mm x 127mm.
