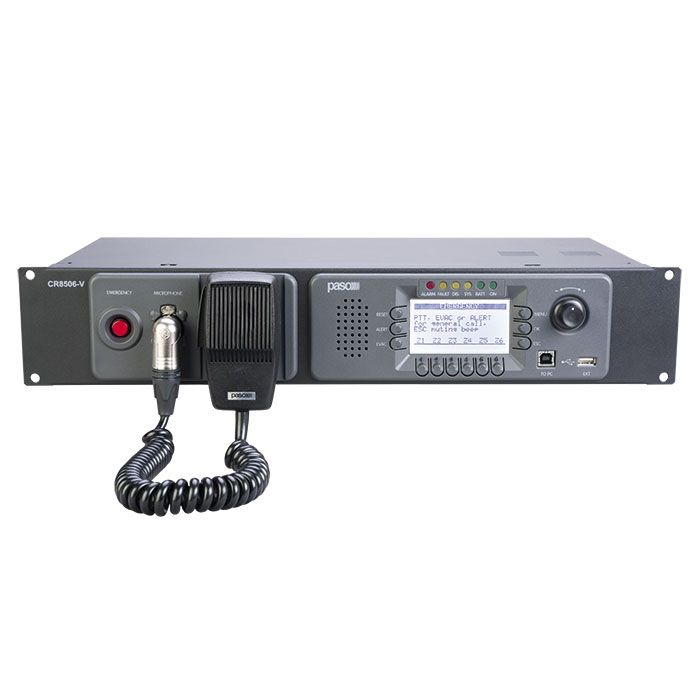

PASO CR8506-V Control unit - 6 lines, EN 54-16 certificate

Control unit - 6 lines, EN 54-16 certificate

The CR8506-V controller is the basic element of the PA8500-VES voice evacuation system; designed to perform all the supervisory functions of the entire system in full compliance with the safety standards in force in voice emergency systems, it also provides for the management and control of all audio signals (evacuation, alert and normal service messages, including background music). The CAT5/RJ45 connection network ensures an easy and flexible installation of all system units: - 6 control lines for PMD series digital amplifiers and/or RT8506-V routers and/or integrated PA8506-V evacuation systems - 2 redundant lines for connecting the various CR8506-V controllers (max 6) - 2 redundant lines for emergency microphone bases, PMB132 series (max 7) - 2 lines for PMB series call stations (max 16, with 7 priority levels)

FUNCTIONAL CHARACTERISTICS: - Supervised emergency front microphone - 2-channel sound system - Message generator for broadcasting dual-channel voice alarms (EVAC and ALERT) - USB input as a background music source - Automatic management of the backup amplifier - Input for secondary power supply (24 Vcc) - 7 programmable and controlled input contacts - 3 relay outputs - 128×64 pixel monochrome graphic display - Diagnostic and reporting of various faults - Standard 19” rack mount (height 2 units)
