COOPER CSA INTRUSION 450-TFC-2 CONTACT FOR OVERHEAD DOORS 3W 2M

CONTACT FOR OVERHEAD DOORS 3W 2M

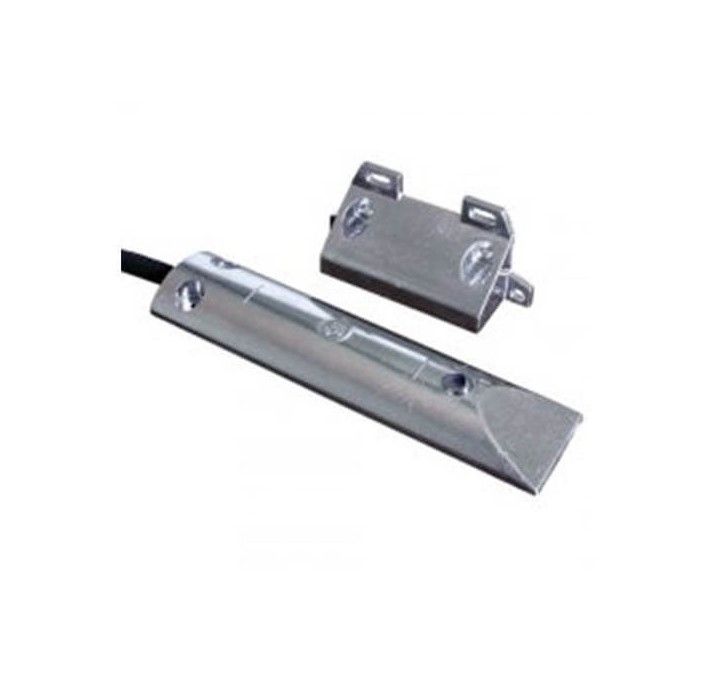

Aluminium magnetic contact for tilting or sliding doors. The sturdy structure of the completely aluminum container guarantees maximum resistance to the passage of the wheels of heavy vehicles, forklifts, etc. and makes this contact suitable for the heaviest uses. The reed part is fixed to the floor with three screws, while the magnet part is fixed to the door (6 fixing holes are available). The large operating distances guarantee its operation even with doors with high clearance. The reed part contains an ampoule hermetically encapsulated with polyurethane resin together with a tamper loop to reduce the chances of burglary. The connection is 4-wire (2 NC contact wires with a nearby magnet and 2 wires for tamper) protected by a sheath with a steel core and black PVC coating. The 450-TFC-2 model is magnetically balanced to reduce the possibility of burglary with an external magnet
