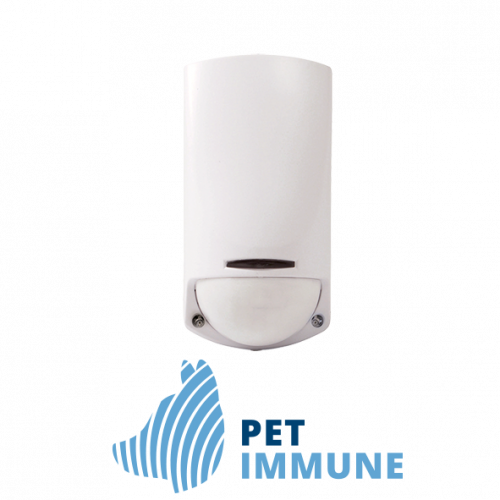

INIM QDTP200H3-A Combined passive infrared and microwave (X-band) indoor detector

Combined passive infrared and microwave (X-band) indoor detector. Digital dual PIR. 15m coverage. Detection angle 90 degrees Digital signal analysis. Pulse counting. Temperature compensation. Anti-blinding. Microwave anti-masking. 3 detachable warning LEDs. Anti-opening and tear-proof protection. AND/OR function. Smart-OR function. Excludable findings. Sensitivity adjustable and independent sensors. Self-test. Remote LED control. EN50131-2-4 Grade 3 certification.

The Pet Immune version of the QDTP200H3 motion sensor with cable connection reduces the risk of false alarms due to the presence of pets inside environments equipped with alarm systems thanks to the ability to exclude the detection of animals up to 50 cm in height and 25 kg in weight. Two infrared rays and a microwave sensor, accurate digital analysis, adjustable sensitivity, automatic temperature compensation and self-test function: QDT200H3 has the most advanced technologies to ensure maximum detection reliability and to meet the requirements for certification to grade 3 according to EN50131-2-4. The device integrates the anti-sabotage system to protect against opening, tearing and masking actions.
