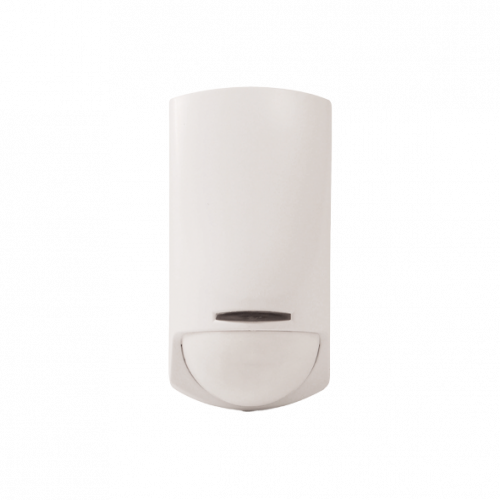

INIM QDT200H-A Combined passive infrared and microwave (X-band) indoor detector - 15m coverage
- MT Code
- INM_QDT200H-A
- Manufacturer Code
- QDT200H-A
- Brand
- INIM
Combined passive infrared and microwave (X-band) indoor detector. 15m coverage. Detection angle 90 degrees. Digital signal analysis. Pulse counting. Temperature compensation. Anti-blinding. 3 detachable warning LEDs. Anti-opening and tear-proof protection. Preparation of end-of-line resistors. AND/OR function. Smart-OR function. EN50131-2-4 grade 2 certification.
QDT200H-A belongs to the category of wired volumetric sensors of the QTech line and has a coverage range of 15 m. The dual infrared and microwave detection technology, accurate digital analysis and automatic temperature compensation ensure a high degree of protection of indoor environments.
The device is equipped with the “AND” and “Smart-OR” functions for generating the alarm: in the first case, the signal is activated when both sensors detect the movement at the same time; in the second case, the signaling is activated when even only one of the two sensors detects a prolonged movement. The easy and immediate programming procedure allows you to customize a series of parameters, including the independent configuration of the sensitivity of the infrared and microwave detectors.
QDT200H-A also integrates anti-sabotage protection systems against opening and tearing actions and is certified to grade 2 according to EN50131-2-4.
Codice Produttore | QDT200H-A |
---|---|
Brand | INIM |
Qxx200H datasheet 100 IT
|
1.8 MB |
