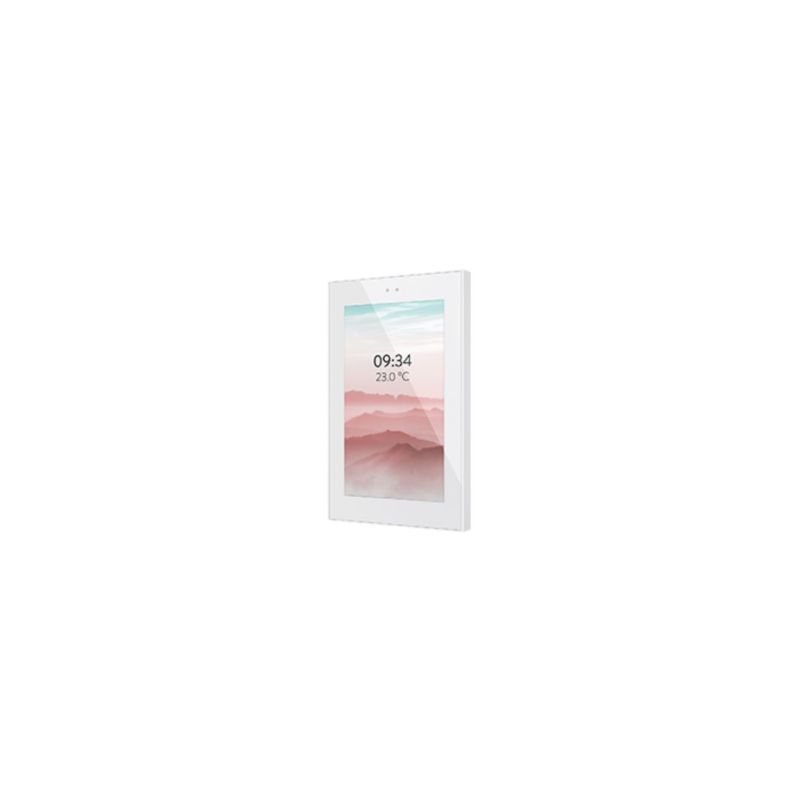

ZENNIO ZVIZ50W Z50 capacitive color touch panel with 5” display, white

<p/the Zennio ZVIZ50W color touch panel is a complete control device for home automation installations. Equipped with a 5-inch capacitive display with a resolution of 480 x 854 pixels, this panel offers intuitive and customizable management of your infrastructure.

Key Features

• 5-inch color display with 480 x 854 pixel resolution
• Capacitive touch panel
• 16 million color LCD display
• Proximity and brightness sensor
• Speakers for acoustic notifications
• Thermostat with two independent regulators
• Integrated temperature probe
• Two analog-digital inputs

Connection Features

• 24-29 VDC external power supply
• Micro-USB connection for firmware updates and additional functionality
• Ethernet connection
• KNX connector for integration with the KNX bus

Optional Features

• Remote control via mobile app (license Ref. 8500006)
• Integration with the video intercom system (license Ref. 8500007)
• Voice control (license Ref. 8500008, requires remote control license)

Installation and Integration

The ZVIZ50W panel is designed to be installed in a standard European or British recessed box. Its installation requires the connection of the KNX bus, the power supply, the inputs and the Ethernet cable.

Temperature sensor

The integrated temperature sensor has a measurement range from -10°C to 50°C, with an accuracy of ±0.5°C at 25°C and a resolution of 0.1°C. The sensor must be calibrated using the application program.

Materials and Dimensions

The panel is made of halogen-free FR V0 PC+ABS material, with dimensions of 142.1 x 85.5 x 35 mm and a weight of 167 g.
