ZENNIO ZVIZ50A Z50 capacitive color touch panel with 5” display, black
- MT Code
- ZNN_ZVIZ50A
- Manufacturer Code
- ZVIZ50A
- Brand
- ZENNIO


Description

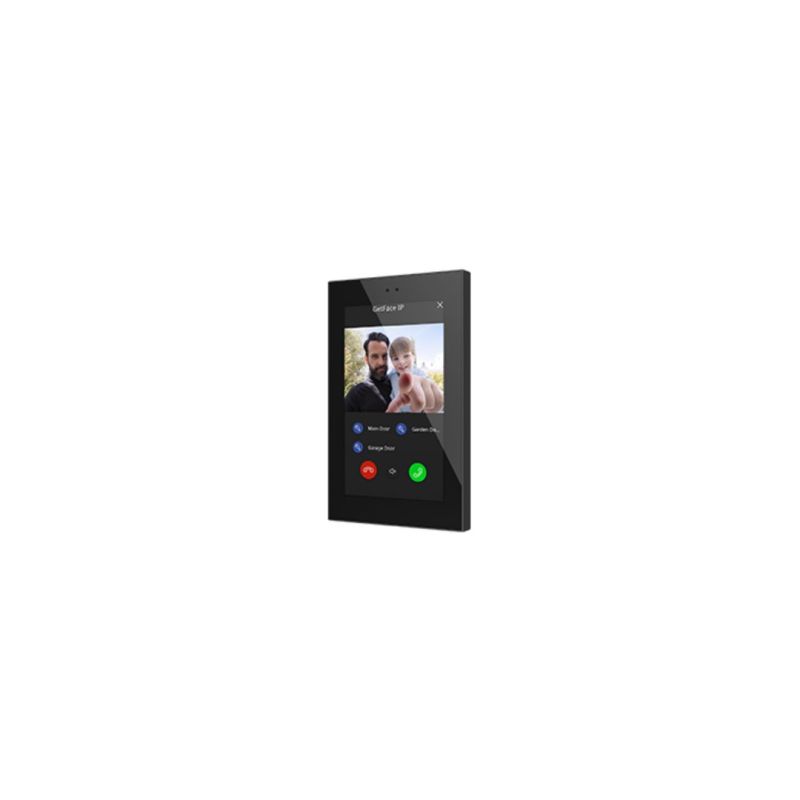

<p_The ZENNIO ZVIZ50A color touch panel is a versatile and powerful device, designed for complete control of home automation systems. This panel features a 5-inch color display with a resolution of 480x854 pixels, ensuring a clear and detailed view.
Key Features
- 5-inch color display with 16 million colors and capacitive touch technology.
- Proximity and brightness sensor for quick activation and deactivation of the screensaver.
- Speakers for acoustic notifications.
- Thermostat with two independent settings.
- Two analog-digital inputs.
- Integrated temperature probe.
Power and Connectivity
- 24-29 VDC external power supply with a maximum consumption of 225 mA (24 VDC) and 200 mA (29 VDC).
- Micro-USB connector for firmware updates and additional functionality.
- Ethernet connector for network connection.
- Integrated with KNX bus and KNX BCU (TP1-256).
Optional Features
- App remote control license: control from smartphones and tablets via mobile app.
- Video intercom license: integration with the Zennio GetFace IP video intercom.
- Voice control license: Voice control requires the remote control license.
Technical Specifications
- Dimensions: 142.1 x 85.5 x 37 mm, with a projection of 11.8 mm from the wall.
- Recessed mounting on standard European/British back box.
- Compliance with CE, UKCA, RCM directives.
- Operating temperature: 5°C.. +45°C.
- Operating humidity: 5.. 95%.
- Protection class: IP20, clean environment.
- Weight: 167 g.
- Case material: PC+ABS FR V0 halogen-free.
Indicators and Operating Modes
- Programming LED: indicates the programming mode (red) and blinks every half a second in safe mode.
- Response in the event of a KNX bus failure: data is saved according to the parameterization.
- Response to restarting the KNX bus: data recovery according to the parameterization.
Data Sheet
Codice a barre | 8000002630177 |
---|---|
Codice Produttore | ZVIZ50A |
Brand | ZENNIO |
Catalisting | No |
Discount category | ZNN15 |
