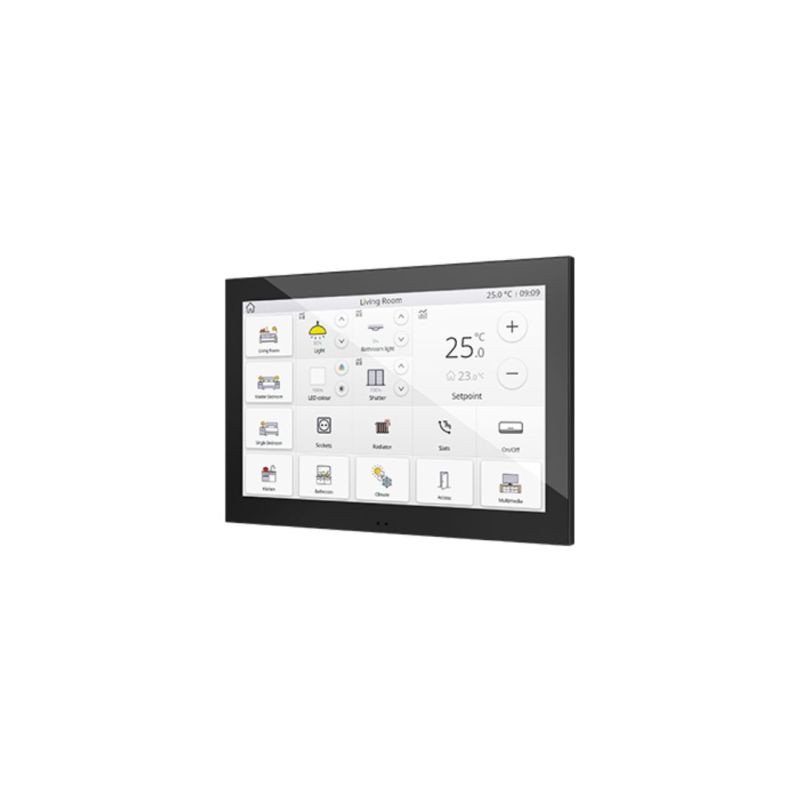

ZENNIO ZVIZ100A Z100 capacitive touch panel with 10" color LCD display, black

The ZENNIO ZVIZ100A capacitive touch panel is an integral control device designed for domestic, hotel or any other type of installation. Equipped with a 10-inch LCD display with a resolution of 1280x800 pixels and 16 million colors, this panel offers a clear and detailed view.

Key Features

• 10-inch LCD display with 1280x800 pixel resolution and 16 million colors.
• Capacitive touch panel with 12 fully customizable pages.
• Ambient light sensor for automatic brightness adjustment.
• Proximity sensor for quick start when activity is detected and a configured screensaver is launched.
• Speakers for acoustic notifications.
• 2 integrated thermostats.
• 4 analog-digital inputs.
• USB and Ethernet connections for software updates.

Optional Features

• Remote Control License: remote control via mobile app or web browser.
• Video Intercom License: integration with Zennio GetFace IP video intercom systems.
• ZenVoice license: voice control (requires Remote Control License).

Installation and Compliance

• Wall installation on double standard European and British mounting box.
• Compliance with CE, UKCA, RCM directives.
• 24-29 VDC external power supply.
• Micro-USB connection for firmware updates and additional functionality.
• KNX BCU integration (TP1-256).
• Dimensions: 248.9 x 174 x 39.2 mm (11.8 mm projection from the wall).

accessories

• Temperature probe.
• Motion sensor.
