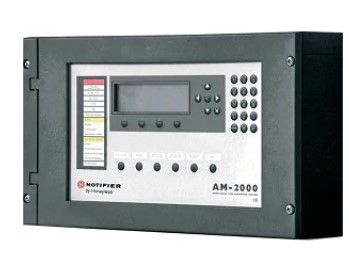

NOTIFIER AM2000N CLIP 2-loop addressed detection unit

CLIP 2-loop addressed detection unit. Each line allows the connection of 99 detectors and 99 modules. The control unit allows the separate management of gas detection. thanks to a special interface module. This display must take place on a remote terminal dedicated only to technical alarms. Controlled siren output. relay outputs for general alarm and fault. Two serial outputs in the standard version with another two optional via an additional card. Standard outputs for 16 terminals and for PCs for download/upload programs. Optional RS232/485 outputs for connection to NOTI-FIRE-NET. Graphic display with 8 lines by 40 columns. Programmable writings with 32 characters per point and 32 characters per zone. 150 geographical zones and 400 groups with logical operators (AND). OR. DEL. etc.). Archive of 999 events. Automatic line programming with double address recognition. Indication of the need for maintenance for detectors. Certified in accordance with EN 54-2. EN 54-4 and EN 54-13 System Certification. 230Vac mains power supply. Standard 2.1A power supply. Auxiliary current at 24Vcc of 1A with restorable and non-restorable output. Recharge two 17Ah 12Vcc batteries. Dimensions. 483mm x 266mm x 111mm.
