INIM FIRE PREVIDIA-ULTRAVOX Modular voice evacuation unit for emergency and fire detection systems of the addressed analog type

INIM FIRE PREVIDIA-ULTRAVOX Modular voice evacuation unit for emergency and fire detection systems of the addressed analog type

MT Code
INM_PREVIDIA-ULTRAVOX
Manufacturer Code
PREVIDIA-ULTRAVOX
Brand
INIM FIRE
INIM FIRE
extra sconto di benvenuto
Description
Modular voice evacuation unit for emergency and fire detection systems of the addressed analog type

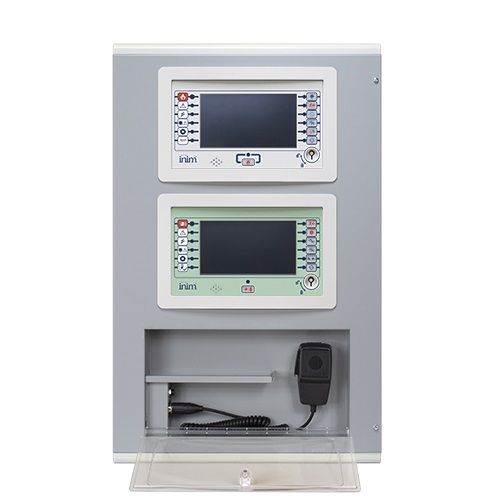

Base unit with fire detection and voice evacuation functions, to which the FPM, FPAM, IFM and IFAM function modules can be added. The cabinet, model PRCAB+, is complete with a plastic door and a niche for housing the PTT microphone and emergency telephone.

Includes: No. 1 FPMCPU Module - Control unit with display for fire detection and alarm functions No. 1 FPAMIAS Module - Control unit with display for Voice evac and public address functions No. 1 IFAMPSU - 1000W power supply module with charger No. 1 IFAMEVAC - Audio matrix module for signal processing No. 1 IFAMAMP - Amplifier module 250W No. 1 IFM2L - Module 2 Loop No. 1 PTT Microphone

Main features: Double touch screen display 7” 65000 colors Functions Detections and fire alarm (Same as the PREVIDIA MAX system) Functions management of GAS shutdown systems (Same as the PREVIDIA MAX system) Integrated management of EVAC functions (Voice Evacuation) Integrated management of Public Address functions (Sound distribution and audio entertainment) Management of 8 local digital audio tracks and 8 digital audio tracks coming from the network Management of up to 30 250W amplifiers in Class D 1000W power supply included expandable to 4000W (adding PRCAB+ cabinet) Speaker line impedance control through pilot tone A/B line management Ring Speaker line management with optional isolators Backup amplifier management Management of two standard and emergency microphone base lines (max 64 per line) Internal Audio Memory for emergency and customizable messages SD Card Management for additional audio No. 2 analog audio music inputs No. 2 analog audio AUX inputs with priority acquisition by contact or on the signal level IDANET network on point-to-point Ethernet or optical fiber, max 48 Power stations, shared audio Possibility to connect up to a maximum of 4 cabinets (up to 3 additional PRCAB+) Up to 1000 Audio Zones Integration cause effect with fire detection system through activation groups Memory last 2000 events on the Fire section controller and last 2000 events on the EVAC controller Advanced Audio Entertainment Management section (see IASS server section and IAC APP) Personalized messages for each audio zone and for the different activation scenarios

Data Sheet
Codice a barre 8000002582957
Codice Produttore PREVIDIA-ULTRAVOX
Brand INIM FIRE
