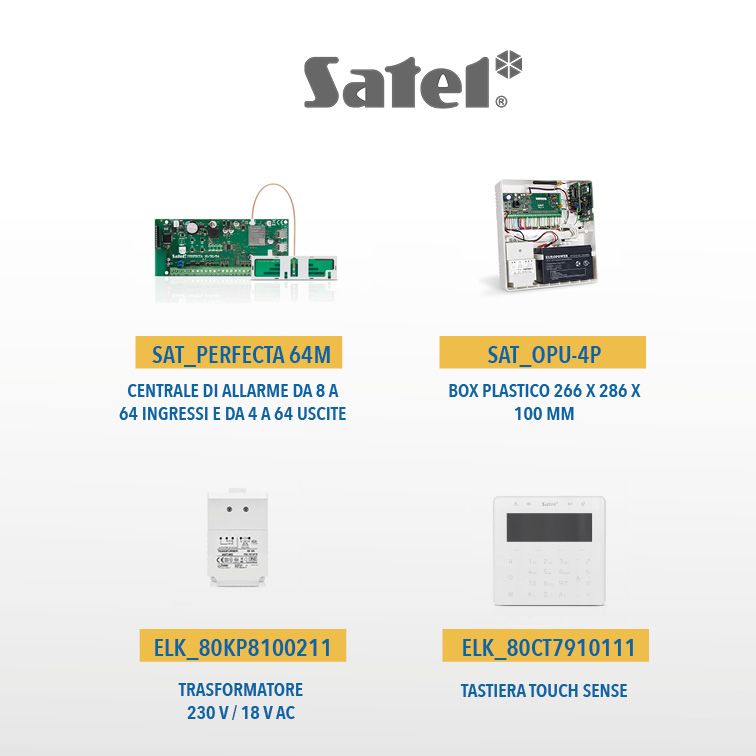

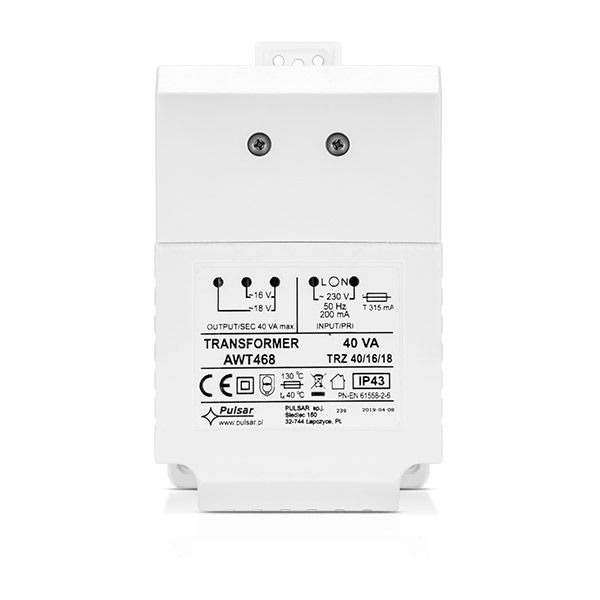

central kit+box+230V transformer+touch keyboard

PERFECTA 64 M control unit, 8 IN and 4 OUT on board, complete with dual SIM LTE module, speech synthesis, antenna. Remotely upgradeable FW. Requires TR40VANEW box and transformer

The PERFECTA 64 M alarm control unit is ideal for the protection of apartments, single-family houses, terraced houses, offices, warehouses. Complies with EN 50131 Grade 2. Its strength lies in its simplicity of configuration, just as its use via touch or traditional keyboards is easy and intuitive. Functionality and management can be controlled remotely via the PERFECTA CONTROL mobile application or remote controls.

PERFECTA 64 M is a hybrid control panel to which two types of wireless systems can be combined by choice: ABAX 2 (with ACU-220 or ACU-280 receivers) or MICRA (via PERFECTA-RF), alternatively, if needed Only for the use of remote controls is it possible to add the INT-RX-S receiver.

PERFECTA 64 M is equipped with a 2G/4G dialer which allows support for PUSH notifications via the free mobile application, complete system configuration with the PERFECTA Soft program, event reporting (also to monitoring stations), voice messages , SMS check and audio check. The module supports two SIM cards to avoid communication interruptions: if transmission on the first operator's network fails, the second SIM is automatically selected.

The control panel has 8 inputs and 4 outputs on board which can both be increased up to 64 with the INT-E input expansions and the INT-O or INT-ORS output expansions. It is therefore possible to expand the system with more detectors, sirens or actuators for building automation (to control the garage door, awnings, shutters, garden sprinklers, etc.). The control unit is compatible with the INT-IT-2 flush-mounted and INT-CR wall-mounted proximity readers, offering the possibility of management by cards and tags.

The system can be divided into four partitions with three arming modes (day, night, total) and they can be independent of each other or have common areas.

The system can be configured in two ways: from a PC with the PERFECTA Soft software (locally or remotely via data traffic) or via any keyboard.

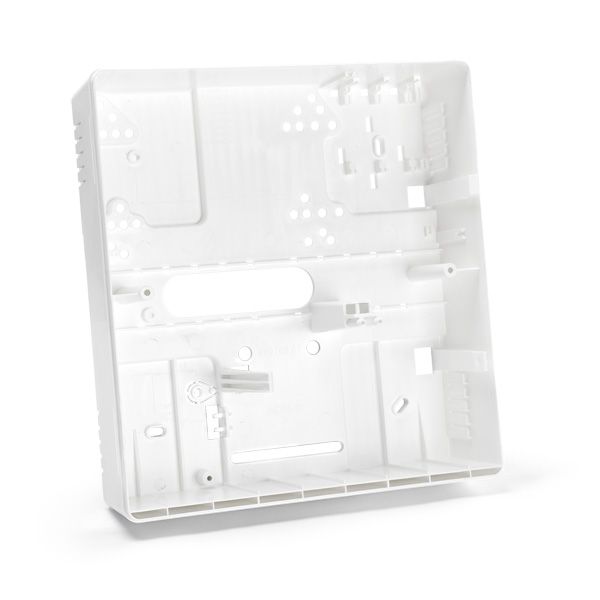

Plastic container for control panels (266 x 286 x 100 mm). expansion modules and GSM modules (without transformer)

OPU-4 P is a rugged surface mount enclosure, made of white ABS plastic. Thanks to its aesthetic appearance, the container can be installed in clearly visible positions in usable internal spaces. The base of the container can be recessed into the wall so that the proper enclosure can take up less space. The neutral design and large dimensions allow many types of SATEL control panels, their expansion modules, communication modules, radio receivers and a large number of other devices to be installed inside the container. OPU-4 P is equipped with double anti-tamper protection against opening and detachment from the wall.

The enclosure has enough space to install 40VA or 60VA mains transformers and can also accommodate a 7Ah, 12V backup battery. Since it does not block or weaken the radio signal, wireless devices, including their antennas can be installed indoors.

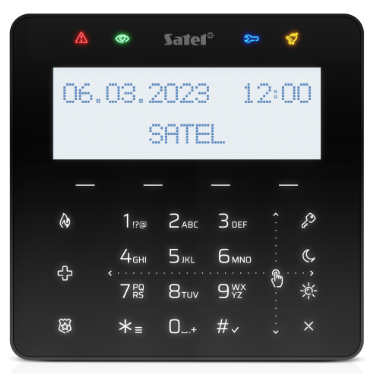

Touch sense LCD keypad with MIFARE proximity reader (for future use). Customizable screensavers and scenarios. NEWINT-KSG2R-W - white versionINT-KSG2R-B - black version

The INT-KSG2R keypad with touch keys is designed for the operation and programming of the INTEGRA and INTEGRA Plus series control panels, as well as the PERFECTA 64 M control panel.

It is a device intended for those who appreciate attractive design, but at the same time want to manage the alarm system and building automation components in the way known from traditional keypads.

Characteristics:
