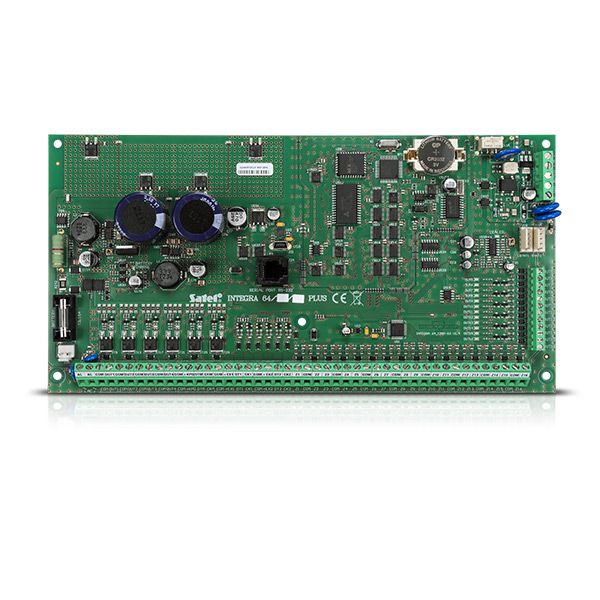

SATEL INTEGRA 64 Plus Central board with 16 to 64 expandable mixed radio-wire inputs and 16 to 64 programmable outputs
- MT Code
- SAT_INTEGRA 64 PLUS
- Manufacturer Code
- INTEGRA 64 Plus
- Brand
- SATEL
Description
Central board with 16 to 64 expandable mixed radio-wire inputs and 16 to 64 programmable outputs. 32 partitions. PSTN. 5,631 events in memory / 64+32 timers / 192+8+1 users. Requires box and 20 V AC 60VA transformer (TR 60 VA)
Thanks to the EN50131 Grade 3 certification, the INTEGRA Plus control panels are appropriate for the creation of systems for buildings with a high risk of break-in such as banks, jewelery shops and public buildings. These control units offer wide functionality and versatility and make it possible to integrate access control and home automation systems
INTEGRA 64 PLUS CONTROL UNIT FEATURES:
complies with EN50131 Grade 3
Integrated 2A+1.5A switching power supply with advanced diagnostics
expandable to 64 zones with the possibility of defining the value of the balancing and 3EOL management resistors
USB socket for programming via PC
possibility of dividing the system into 32 partitions, 8 subsystems
expandable to 64 programmable outputs
communication bus for connecting keyboards and expanders
telephone communicator with surveillance functions, voice messages, remote programming
system control via: LCD keypads, partition keypad, remote controls and proximity card readers, or remotely, via mobile phone, or PC
64 independent timers for automatic control
access control functions and home automation functions
5 631 events in memory
capable of supporting up to 192+8+1 user codes
possibility of updating the firmware via PC
option to remove the notification of failed Server connection on the control panel (INTEGRA Firmware 1.16 or later)
Data Sheet
Codice Produttore | INTEGRA 64 Plus |
---|---|
Brand | SATEL |
Download
INTEGRA UTENTE IT
|
2.0 MB |
INTEGRA INSTALLATORE IT
|
2.8 MB |
