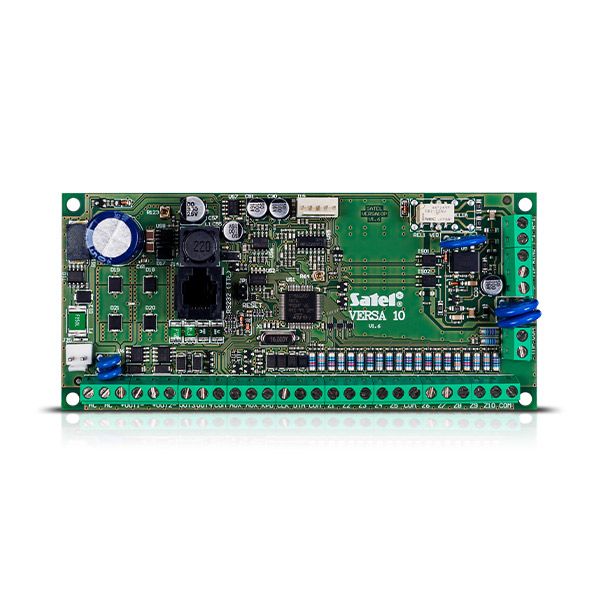

SATEL VERSA 10 Central board - 10 zones - 4 outputs (max. 30 zones - 12 outputs)
- MT Code
- SAT_VERSA 10
- Manufacturer Code
- VERSA 10
- Brand
- SATEL
Description
Central board - 10 zones - 4 outputs (max. 30 zones - 12 outputs)
Control panels for small and medium-sized systems, offering versatile security features. Their advantage over the competition is given by the great expansion possibility offered by the wired and wireless modules (compatible with ABAX, ABAX 2 receivers: ACU-220 and ACU-280) and by advanced communication functions available thanks to GSM/GPRS modules and dedicated TCP/IP.
Description:
- compliance with EN50131 Grade 2
10 zones expandable to 30 zones:
- selection between configurations: NO, NC, EOL, 2EOL/NO, 2EOL/NC
- possibility of managing cable contacts (shutter) and vibration
- checking the presence of the detector
- additional anti-tamper inputs
- from 4 to 12 programmable outputs
- 2 power outputs (3 terminals)
division of the system into 2 partitions that can be managed jointly or separately:
- 3 different arming modes for each partition
- control performed by the user, or with the aid of timers
- communication bus for connecting keyboards, readers, and expansion modules
- RS-232 port for programming the control panel
built-in telephone communicator, for carrying out the functions of:
- surveillance (SIA, ContactID, and others)
- voice messages (8 numbers, 16 text messages, voice messages with optional module)
- remote programming (300 bps modem)
management of GSM/GPRS modules:
- voice/SMS dialer
- SMS / GPRS reports
system control via:
- LCD or LED keyboards (up to 6)
- wireless keyboards VERSA-LCDM-WRL (VERSA 10 Firmware v1.04 or newer), VERSA-KWRL2 (VERSA 10 Firmware v1.09 or newer)
touch screen keyboards:
- INT-TSG (INT-TSG Firmware v1.03 or newer, VERSA 10 Firmware v1.04 or newer)
- INT-TSH (VERSA 10 Firmware v1.06 or newer)
- proximity cards (up to 6 readers)
- radio controls for remote control
- easy firmware update for future implementations
management of up to 31 codes:
- 30 standard users
- 1 installer
programming of names to simplify the use and management of the system
timer:
- 4 timers with exception handling
- memory of 2047 events
- automatic diagnostics of the basic elements of the system
2A switching power supply, built-in:
- protection against overloads
- protection against complete discharge of the accumulator
- regulation of the battery load current
- option to remove the notification of failed Server connection on the control panel (INTEGRA Firmware 1.16 or later)
Data Sheet
| Codice Produttore | VERSA 10 |
|---|---|
| Brand | SATEL |
