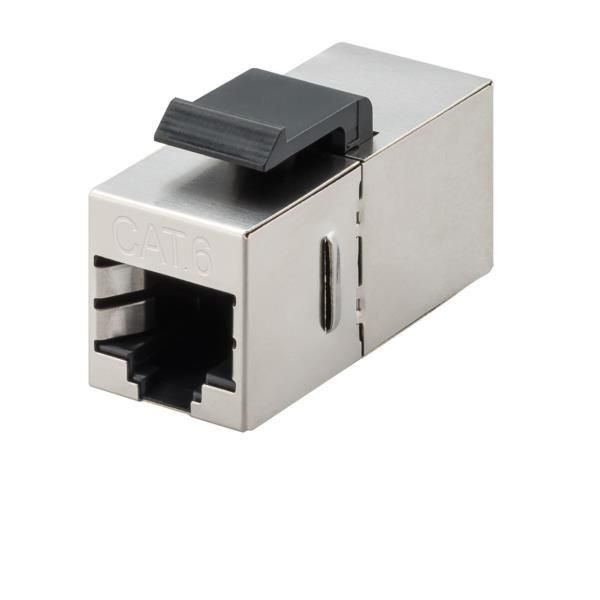

WP RACK WPC-CPR-K6S CAT 6 MODULAR COUPLER SHIELDED

CAT 6 modular coupler, shielded, RJ45 to RJ45, for panel connection The modular couplers from WP CABLING are shielded and provide best performance and link quality for your network. They are equipped with 2 RJ45 sockets with the assignment 1:1 and are therefore suitable for mounting in Patch Panels. -Transmission properties: Category 6 -Area of application: Up to 100 MHz, 10/100Base-T, 1GBase-T -Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C General properties: -2x RJ45 Female, 8P8C -360o shield coverage -Connection 1:1 -Housing material: Zinc die-cast, nickel-plated -RJ45 female material: ABS UL 94V-0 -RJ45 female contact: Tinned phosphor bronze, 0.5 gold-plated contact -RJ45 shielding: Tinned bronze -Conductor plate: FR4, UL 94V-0 -Insertion force: 30N max. (IEC 60603-7-5) -Retention strength: 7.7 kg between jack and plug -Operation temperature: -20o C to +70 oC (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C) -IDC wire size: 22 26 AWG solid and stranded conductor -Insulation resistance: > 500 MOhm -Contact resistance: < 20 MilliOhm -Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground) -Category: CAT 6
