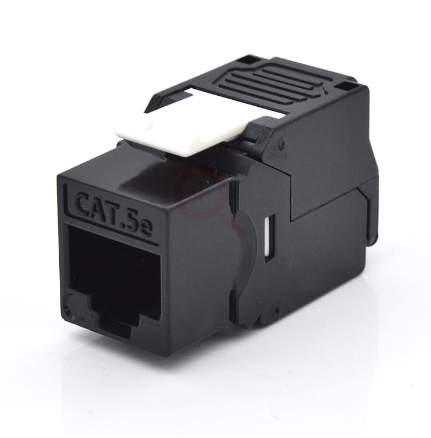

WP RACK WPC-KEY-5U-180/BL CAT 5E KEYSTONE MODULE 180°, UNSHIELDED, BLACK
- MT Code
- WPN_WPC-KEY-5U-180/BL
- Manufacturer Code
- WPC-KEY-5U-180/BL
- Brand
- WP RACK
![WP RACK WP RACK](https://images.ctfassets.net/g6z2so3d6429/1VS7koVYkKUdDdKnS5SMWm/daeef2892717782847be1f853ba1b46f/WPRACK_160X160.jpg?w=260&h=260&fm=webp&q=80)
![extra sconto di benvenuto](https://images.ctfassets.net/g6z2so3d6429/1nCII0xdbZgmEJPENaWasr/e37d4000d07fb07137d1d55247893c74/Benvenuto2024_.jpg?w=540&fm=webp&q=80)
Description
- Transmission properties: Category 5e - Area of application: Up to 100 MHz, 10/100Base-T, 1GBase-T - RJ45 female, 8P8C, unshielded - Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B - Dual IDC type, 180 degree - Dust cover for IDC Electrical propeties: - Voltage rating: 125 VAC RMS - Current Rating: 1,5 AMP - Contact resistance: < 100 MilliOhm - Insulation resistance: > 1000 MOhm @ 500 VDC - Dielectric strength: 750 VAC RMS 60Hz, 1 min Environmental properties: - Storage: -40o C to +85 oC - Operation temperature: -0o C to +70 oC Mechanical properties: - Housing material: PC - Insert material: Frame Retardancy PBT - PCB material: FR-4 T¡Ü1,6mm - Contact material: Phosphor bronze stamp PIN T¡Ü0,30mm - IDC Contact material: Phosphor bronze T¡Ü0,50mm with tin plating - Mating cycles RJ45: > 750 times - Clamp: > 200 times - IDC wire size: 23 26 AWG
Data Sheet
Codice Produttore | WPC-KEY-5U-180/BL |
---|---|
Brand | WP RACK |
