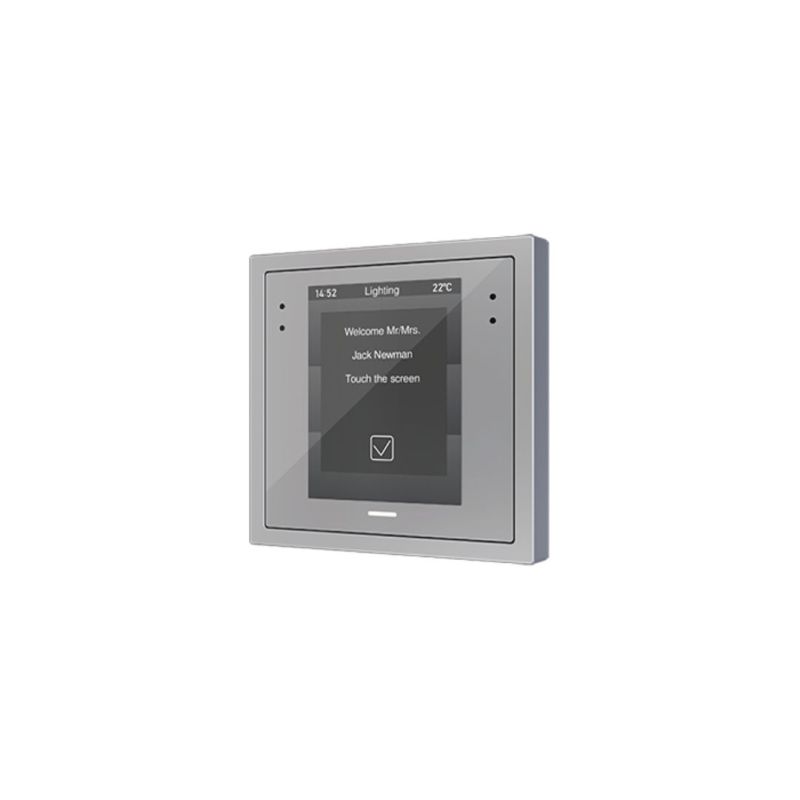

ZENNIO ZVIZ28S Z28 capacitive touch panel with 2.8” backlit display, silver

The ZENNIO ZVIZ28S touch panel is an innovative device designed to be installed in the 70 x 70 mm panels of Zennio's ZS70 series and Jung's LS series. This capacitive touch panel features a 2.8-inch backlit display, a proximity sensor and a light sensor, as well as two independent thermostats.

Key Features

• 2.8 inch capacitive touch display with backlight.
• Proximity sensor and brightness sensor to automatically adjust screen brightness.
• Two independent thermostats for precise temperature control.
• 35 control points/tabs divided over 5 pages.
• Energy saving screen that displays image, time, date and/or temperature when the panel is not in use.

Input Functionality

The two analog-digital inputs can be configured as binary inputs, sensors, buttons, temperature probes or motion detectors.

Accessories and Finitions

• Available in white, anthracite and silver finishes.
• Accessories included: temperature probe and motion detector.

Integration with ETS

The ZVIZ28S panel is compatible with ETS5 and ETS6 software, requiring an update to the most recent version for a correct import of the product.
