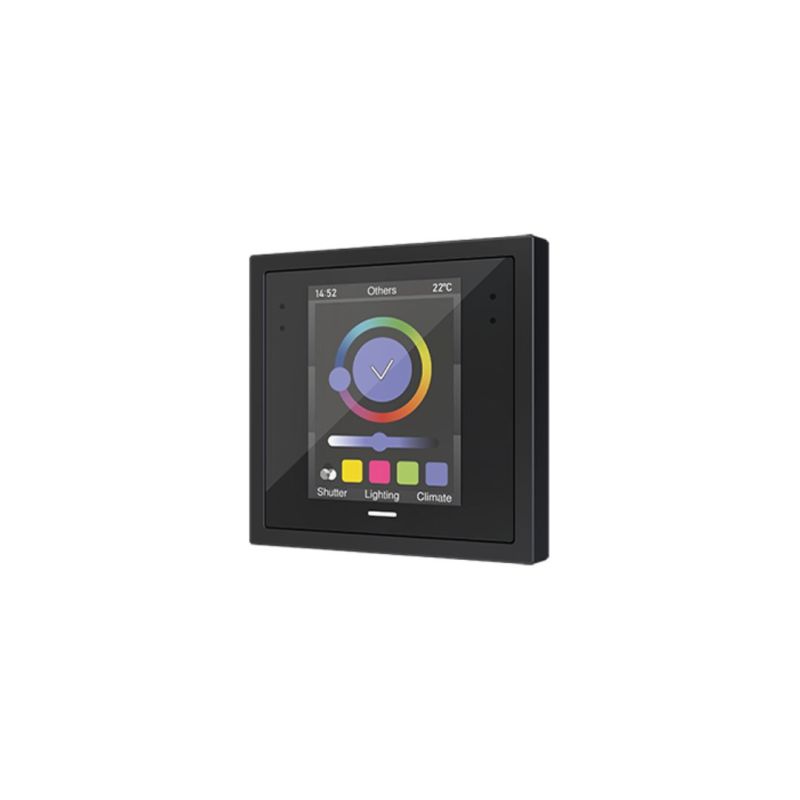

ZENNIO ZVIZ28A Z28 capacitive touch panel with 2.8” backlit display, anthracite

<p/the Zennio ZVIZ28 capacitive touch panel is designed to be installed exclusively with 70 x 70 mm frames from Zennio's ZS70 series. This device is equipped with a 2.8-inch backlit display with a resolution of 240x320 pixels.

Key Features

The ZVIZ28 panel includes several innovative features:

• Integrated proximity and brightness sensors, which automatically adjust the brightness of the display and activate the screensaver when the panel is not in use.
• Two independent thermostats for precise temperature control.
• 35 control points/tabs divided over 5 pages, offering great configuration flexibility.
• Two analog-digital inputs configurable as binary inputs, sensors, buttons, temperature probes or motion detectors.

Design and Installation

The ZVIZ28 panel is available in three finishes: silver (RAL 9006), anthracite black (RAL 9004) and white (RAL 9016). Its size of 71 x 71 x 36.6 mm makes it ideal for recessed mounting on a junction box.

Additional Features

The panel includes a clock function, which can be updated through devices with RTC or NTP clients. In addition, it guarantees the protection of data in the event of a KNX bus failure.

• Integration with the KNX TP bus via KNX BCU (TP1-256).
• Compliance with CE, UKCA, RCM directives.

Use and Configuration

The ZVIZ28 panel is designed to be easy to set up and use. Its functionality can be managed through 5 configurable pages and a settings page. This makes the device highly customizable to meet the specific needs of users.
