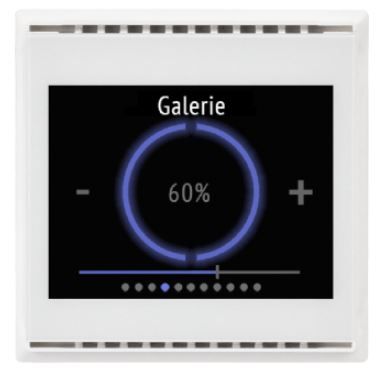

ELSNER 70801 Cala Touch KNX T 3.x CH- pure white RAL 9010 room controller with temperature sensor
- MT Code
- ELS_70801
- Manufacturer Code
- 70801
- Brand
- ELSNER
General Characteristics
The Cala Touch KNX T 3.x CH has an elegant design with a housing made of glass, plastic and metal, available in the colors RAL 9010 (white) and RAL 9005 (black). The dimensions of the device are 60 mm x 60 mm, with a mounting depth of at least 10 mm and a total weight of about 70 grams.
Environmental Resistance
The device is designed to operate in an ambient temperature range from 0 to +45°C and a non-condensing relative humidity of 5-95%. The storage temperature ranges from -25 to +70°C.
KNX Configuration and Communication
The configuration of the Cala Touch KNX T 3.x CH takes place using the ETS software for the KNX system. The device supports the TP1-256 medium and the S-Mode configuration mode. It can assign up to 2000 group addresses and has a capacity for 471 communication objects. The nominal voltage is 30V DC SELV, with a current consumption of less than or equal to 22 mA.
Inputs and Sensors
The device has four analog/digital inputs, with a contact voltage of 3.3 V and a contact current of 0.33 mA. It is possible to connect T-NTC temperature sensors (item number 30516) with a measurement range from -40 to +80°C. CO2, humidity and temperature sensors can measure between 400-5000 ppm, 0-100% and -5 at +60°C, respectively.
Other Features
- Degree of protection IP20.
- Overvoltage category III.
- Pollution degree 2.
- Conductor diameter for the KNX connection: Ø 0.8 mm, stripping length 5 mm.
- Data recovery time after the bus voltage resumes: about 5 seconds.
Lighting Control
The Cala Touch KNX T 3.x CH offers the possibility of lighting control, including the adjustment of color temperature and RGB color, thanks to the functionality of Human Centric Lighting.
| Codice Produttore | 70801 |
|---|---|
| Brand | ELSNER |
