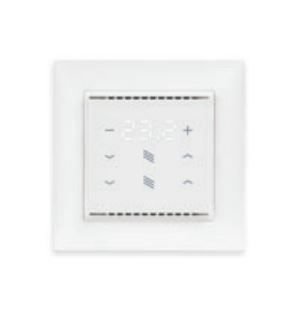

ELSNER 71051 Cala KNX T 202 Sun Shade CH- white 9010 Thermoregulator - Button for 2x Shading

<p/the ELSNER 71051 product, called Cala KNX T 202 Sunblind CH, is a temperature and dimming controller integrated into the KNX building bus system. This device has touch-sensitive buttons that allow you to recall various functions within the KNX system.

Key Features

• Glass, plastic and metal body, available in white RAL 9010.
• Dimensions: 60mm x 60mm with mounting depth of at least 10mm.
• Total weight: about 50g
• Operating ambient temperature: -5°C + 45°C.
• Ambient humidity (non-condensing): 0% - 95%.
• Storage temperature: -25°C + 70°C.
• Overvoltage category: III.
• Degree of pollution: 2.
• Protection class: IP20 after assembly.

Temperature Control Functions

• Temperature control zone with 2 areas (warmer, cooler).
• Temperature measurement with mixed values deriving from the own measurement and from external values (the proportion can be set as a percentage).
• Output of minimum and maximum values.
• Temperature regulation using PI-controller for heating (one or two levels) and cooling (one or two levels) based on separate setpoints or a basic setpoint.

Button and LED functions

• The buttons can be configured as a switch, selector, 8-bit or 16-bit encoder, or for calling up scenarios.
• Configurable LEDs: all off, all as ambient lighting or individually controllable.
• Area function that can be activated by touching two or more buttons.

Integration with the KNX System

• Medium: TP1-256.
• Setup mode: S-Mode.
