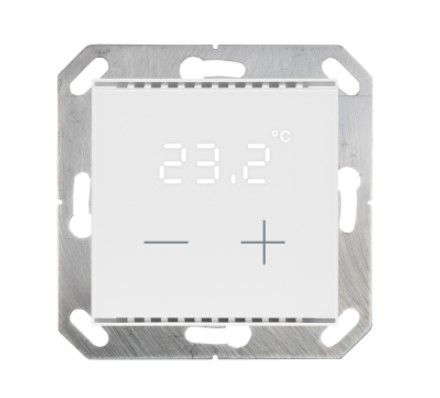

ELSNER 70980 Cala KNX T 101 Room temperature controller, white

Product Description ELSNER 70980 Cala KNX T 101

The Cala KNX T 101 Room Temperature Controller by Elsner Elektronik is a specialized device for temperature control in domestic and commercial environments, integrated into the KNX automation system.

Key Features

• Measure and display the room temperature value through digits illuminated in white.
• Integrated with a temperature sensor, it allows you to calculate mixed values (internal and external).
• Output for two temperature limit values.
• It works with the voltage of the KNX bus, ensuring effective management of the ambient climate.

User Interface and Functionality

• Color display with touch surface for controlling light, dimming, windows, heating, air conditioning and scenes (customizable).
• Visualization of values and texts.
• Up to 3 user interfaces for the light (switching or adjustment with display of the current value).
• Page setup for RGB color and color temperature.
• Biodynamic light control (human centric lighting).
• Up to 3 user interfaces for dimming or windows displaying the current travel position or blades.
• User interface for heating and climate.
• User interfaces for up to 4 scenes.
• Display page for measured values, display page for up to 4 bus values and two display pages per text.
• Weekly timer with 8 time periods.
• Safeguard screen that shows the time or the internal/external temperature.

Installation and Design

• Flexible wall mounting with or without switch box.
• Dimensions of about 82 mm × 82 mm and mounting depth of about 12 mm, similar to a standard switch.
• Available colors: deep black RAL 9005 and signal white RAL 9003, suitable for many current furnishing styles.

Other Features

• 4 inputs (binary inputs or for T-NTC temperature sensor), connection cable for the inputs provided.
• Calculation of mixed values.
• 3 operating zones arranged one above the other, printed with function icons.
• 3 touch fields per zone, freely configurable.
• LED for optical feedback.
• Logic gates (4 AND, 4 OR).
