ELSNER 70963 Cala KNX MultiTouch T Light CH- black RAL 9005 Light-Temperature Button

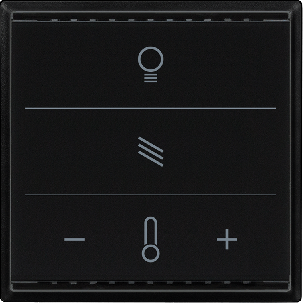

<p_The Cala KNX MultiTouch T CH button, produced by Elsner Elektronik, is a multifunctional control device designed for integration into the KNX building bus system. It has a printed glass surface with touch-sensitive buttons, allowing you to recall various functions within the KNX system.

Main Features

• Operation zones for the light with 3 areas (turning on and adjusting the brightness)
• Temperature control operation zones with 3 areas (warmer, colder, heating/cooling switching)
• Total of 9 areas, all of which can be assigned to the expected bus functions or to other individual functions (switches, switches, brightness regulators, curtains, awnings, blinds, windows, 8 or 16 bit encoder, call/scene)

Configuring the LEDs

• LED setting: all off, all on, active LEDs always on, all LEDs on for a specific time after pressing the button, active LEDs on for a specific time after pressing the button
• Setting the brightness of the LEDs for day and night
• Option to flash the LED when the value of the block object is 1

Technical characteristics

• Authentic glass or plastic case
• Available colors: similar to RAL 9010 (pure white), on request similar to RAL 9005 (deep black)
• Input box installation
• Degree of protection IP 20
• Case dimensions: about 60 x 60 mm (L x H), installation depth about 10 mm
• Total weight: about 50g
• Ambient temperature: operation and storage -25°C... +85°C
• Ambient humidity: maximum 95% RH, avoid condensation
• Operating voltage: KNX bus voltage
• Bus current: 19 mA maximum
• Data output: KNX bus connection terminal +/-
• Group addresses: maximum 205

Other Features

• Cover frame (for 60 x 60 mm insert) and mounting plate (77 mm) for Swiss installation standard
• Integrated temperature sensor
• Touch area function of five or more buttons, configurable as required
