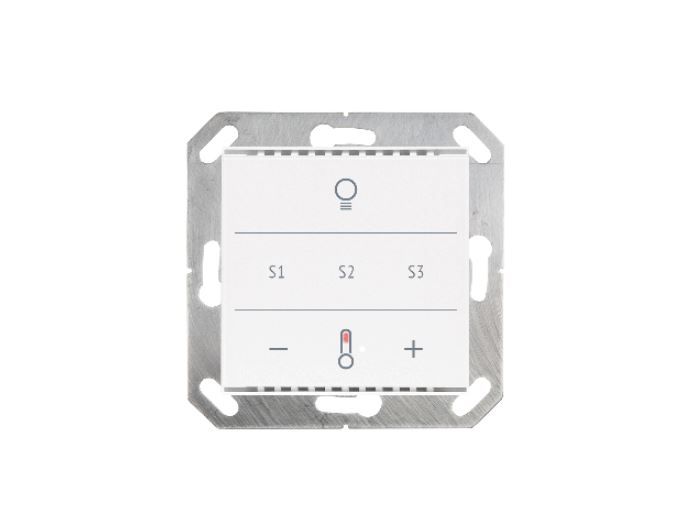

ELSNER 70960 Cala KNX MultiTouch T - Button with function icons, white

ELSNER 70960 Product Description

The Cala KNX MultiTouch T Light/Scenes button, code 70960, is a control device for home automation systems integrated into the KNX bus system. This product is designed to be installed on the wall and integrates perfectly into lighting and climate control equipment.

Key Features

• Glass surface with touch-sensitive areas for light and temperature control.
• Operation zones for the light with 3 areas (on/off and intensity adjustment).
• Temperature control operation zones with 3 areas (warmer, colder, heating/cooling switching).
• Total of 9 areas, all of which can be assigned to specific or individual bus functions (switches, switches, dimmers, blinds, blinds, windows, 8 or 16 bit encoders, call/save scenes).

Control Features

• Curtain/sunshade control with motion functions (up/down).
• Call scenes (up to 3 scenes).
• Integrated temperature sensor that allows you to receive external temperature readings via bus and to process them with your own data to create a mixed temperature value.
• Biological light control (human centric lighting) with adjustment of the color and temperature of the light.
• Weekly timer with 8 time periods.
• Energy saving screen that shows the time or the indoor/outdoor temperature.

Configuration and Installation

• Wall installation in a Ø 60 mm junction box, 42 mm deep or in a wall socket for a Ø 68 mm hole.
• Dimensions of the enclosure: approximately 55 x 55 mm, installation depth approximately 10 mm, base approximately 71 x 71 mm.
• Total weight: about 50g.
• Degree of protection: IP 20.
• Ambient operating and storage temperature: -25°C to +85°C.
• Maximum ambient humidity: 95% RH, avoid condensation.

LED and Visual Feedback

• Configurable LEDs: all LEDs off, all LEDs on, active LEDs always on, LEDs on for a specific time after pressing the button.
• Adjusting the brightness of the LEDs for day and night.
• Visual feedback via LED for activated functions.
