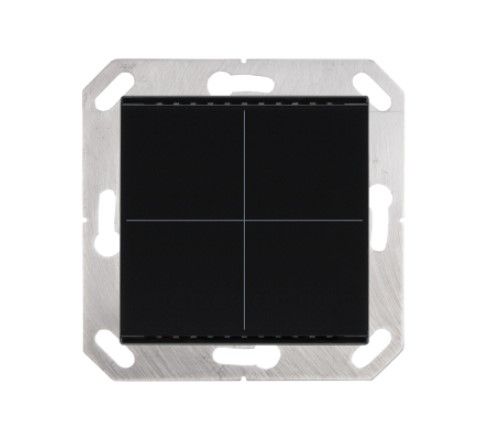

ELSNER 70882 Cala KNX M4-T- jet black RAL 9005 4-gang Push Butt

MT Code: ELS_70882
Manufacturer Code: 70882
Brand: ELSNER

The CALA KNX M4-T bus button, code 70882, is a versatile and highly configurable device for the KNX home automation system. This four-gang button is designed to be installed on the wall and integrates perfectly with existing furniture elements.

Key Features

Authentic glass, plastic and metal body, available in RAL 9010 (white) and RAL 9005 (black) colors [5).
Dimensions: 55mm x 55mm x 35mm, with a support core of 71mm x 71mm and a mounting depth of about 7mm [4).
Total weight: about 50g [4).
Degree of protection: IP20 after assembly [4).
Operating ambient temperature: -5°C to +45°C, non-condensing relative humidity: 0-95% [4).
Storage temperature: -25°C to +70°C [4).

Button functionality

Touch-sensitive buttons can be configured as switches, selectors, dimmers, for motor control, as 8 or 16 bit encoders or for callback/storage scenarios [5).
Area function when you touch three or more buttons, configurable as switches, selectors, encoders or for calling up scenarios [4).
An LED for each touch area, on for object value = 1/off for object value = 0, on after pressing the button for a settable time or always off. You can set whether the LED blinks when the object value = 1 is blocked.

Temperature Measurements

Integrated temperature sensor that provides directly measured values and can receive external values via bus, calculating a mixed value that can be set as a percentage).
Temperature measurement range: -5°C to +60°C).

Configuration and Communication

Configuration mode: S-Mode).
Maximum group addresses: 183, maximum assignments: 183, communication objects: 73).
Nominal voltage: 30V DC SELV, power consumption: ≤ 15 mA).
Connection via KNX connection terminals, conductor diameter: 0.6-0.8mm, sheath length: adjustable).
Duration after the bus voltage is restored until data is received: about 5 seconds).

The CALA KNX M4-T button is an ideal option for those looking for a versatile and intuitive control solution for KNX home automation systems.
