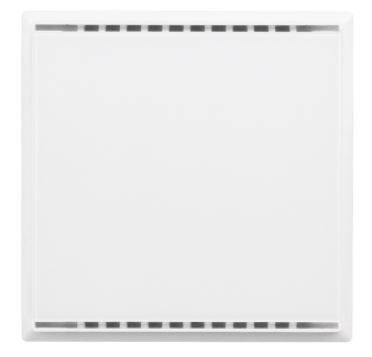

ELSNER 70861 Cala KNX M1-T CH- pure white RAL 9010 1-gang Push

The ELSNER 70861 Cala KNX M1-T CH button is an innovative device designed to integrate perfectly into the KNX automation system. Made with an elegant and functional design, this button is available in pure white RAL 9010.

Key Features

The Cala KNX M1-T CH button is equipped with a touch-sensitive button that allows you to recall various functions of the KNX system, such as turning on and off electrical appliances, lighting control and other automation functions.

Button functionality

• The touch-sensitive button allows for intuitive and easy-to-use interaction.
• It supports different control modes, including on and off functions, as well as the management of predefined scenarios.

Temperature sensor

The device includes an integrated temperature sensor, which allows you to measure the ambient temperature accurately. The measurement can be corrected to compensate for the device's self-heating, ensuring high accuracy.

Technical characteristics

• Glass and plastic house.
• Colour: pure white RAL 9010
• Installation in a junction box with degree of protection IP 20.
• Dimensions: 60 x 60 mm (width x height), installation depth approximately 10 mm.
• Total weight: about 50g
• Operating temperature: -25°C to +80°C, storage temperature: -30°C to +85°C.
• Ambient humidity: maximum 95% RH, avoid condensation.
• Operating voltage: KNX bus voltage.
• Maximum bus current: 15 mA.

Logic and Communications

The device supports advanced logic functions, including AND and OR logic gates with 4 inputs each. All switching events and logic inputs can be used as inputs for logic gates. The configuration takes place through the KNX ETS 5 software.

Other Features

• Configurable LEDs to indicate the status of the objects.
• Configurable behavior in the event of a power interruption and restoration.
