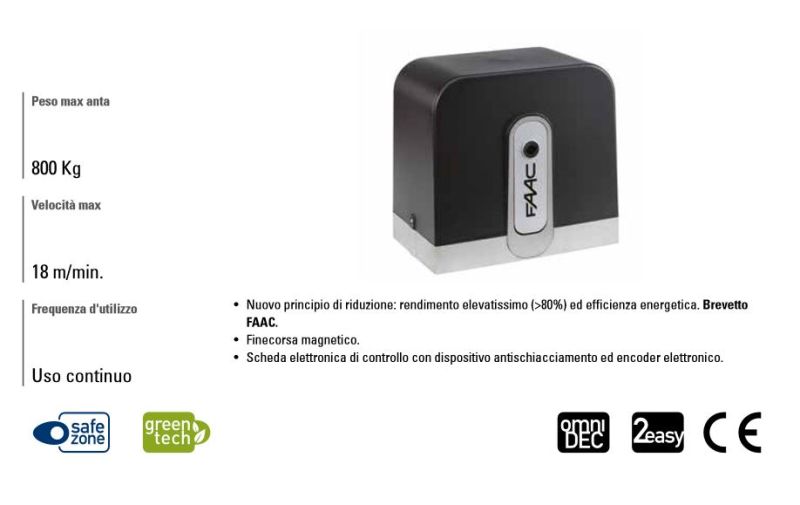

FAAC 109321 C721 24V 800KG Sliding Gate Motor Gear Motor

C721 24V 800KG Sliding Gate Motor Gear Motor

24V low voltage gearmotor Max door weight: 800 Kg Max speed: 18 m/min. Frequency of use: Continuous use - New reduction principle: very high efficiency (> 80%) and energy efficiency. FAAC patent. - Magnetic window. - Electronic control board with anti-crush device and electronic encoder. C721 includes: a low-voltage electromechanical actuator with E721 electronic equipment, rack pinion, an unlocking key, foundation plate. The C721 includes the unlock lock with customizable key

TECHNICAL CHARACTERISTICS: Network supply voltage: 220-240V~ 50/60 Hz Electric motor: 24V brush motor Max power: 290 W Max torque: 30 Nm Max thrust force: 530 N Reduction ratio: 1:49 Max leaf width: 15 m Sash speed: 18 m/min (adjustable) Speed control and motor control: Yes — Electronic adjustment Stroke window: Magnetic Sprocket: Z28 module 4 Encoder: Electronic encoder Force adjustment: By electronic board Ambient operating temperature: -20°C ÷ +55°C Degree of protection: IP44 Weight: 8 Kg Dimensions (LxDxH): 304 x 180 x 282 mm Max door weight: 800 Kg Frequency of use: 1 Electronic equipment: built-in E721
