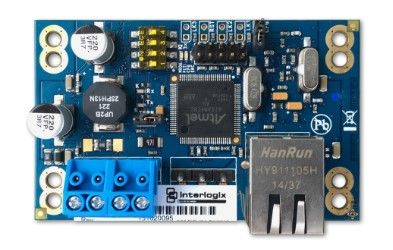

ARITECH INTRUSION ATS1745 Bus interface module - IP LAN for ATS control units

Bus interface module - IP LAN for ATS control units. It allows you to connect devices on the ATS bus via the local IP network. It can be set up as a Start-Of-Line module or as an End-Of-Line module. Up to 31 End-Of-Line modules can be connected to a Start-Of-Line module. 128 bit AES encrypted data communication. Programmable via Web Browser

The ATS1745 module allows data on the BusATS RS-485 to be transported via an IP network. This module provides an IP connection through an ATS Master or ATS Advanced control panel and their devices on the bus such as readers and keyboards (RAS), input expansions and 4-port controllers (DGP), reducing the need for dedicated cabling using a shielded cable twisted in pairs (WCAT52 or WCAT54)

The ATS1745 module also allows you to physically separate different segments of the ATS RS-485 bus to connect them together via the local IP network, both to increase distances and to use existing IT infrastructure.

It is perfect for connecting a control unit to RAS, DGP or remotely located port concentrators where it is expensive to carry a connection cable but where an IP connection already exists (subject to network performance requirements).

The ATS1745 modules provide secure, encrypted IP communication using the unique 128-bit encryption key.

The ATS1745 modules can be configured both as a “start of line” (SLM) module and as an “end-of-line” (ELM) module. The SLM module is connected to the ATS control unit while the ELM modules provide IP connection for all bus devices of the ATS Master or ATS Advanced systems

An SLM module can support up to 31 ELM modules to include 15 DGP and 16 RAS for each bus connection. The ATS1745 module can be easily and conveniently configured via an IP network via a
