COOPER CSA INTRUSION 314-N BUILT-IN MICRO CONTACT WITH FLAT MAGNET

BUILT-IN MICRO CONTACT WITH FLAT MAGNET

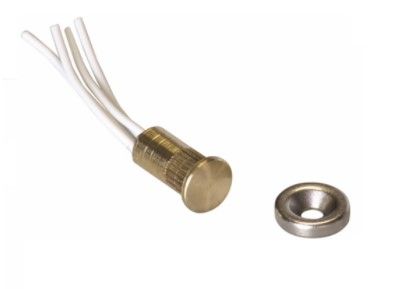

Magnetic contact in brass with high mechanical resistance for recessed mounting. Despite being the smallest magnetic contact ever, the operating distances are suitable for most uses thanks to the use of rare earth magnets and miniaturized reed bulbs. Suitable for mounting on aluminum, wood, PVC frames and generally non-ferromagnetic frames (mounting on iron frames significantly reduces the operating distance). It is pressure mounted on the window by drilling a 6 mm diameter hole. The reed part contains an ampoule hermetically encapsulated with polyurethane resin together with a tamper loop to reduce the chances of burglary. The 314-N model is equipped with a 300-MA type flat magnet. The connection is 4-wire (2 NC contact wires with nearby magnet and 2 wires per tamper)
