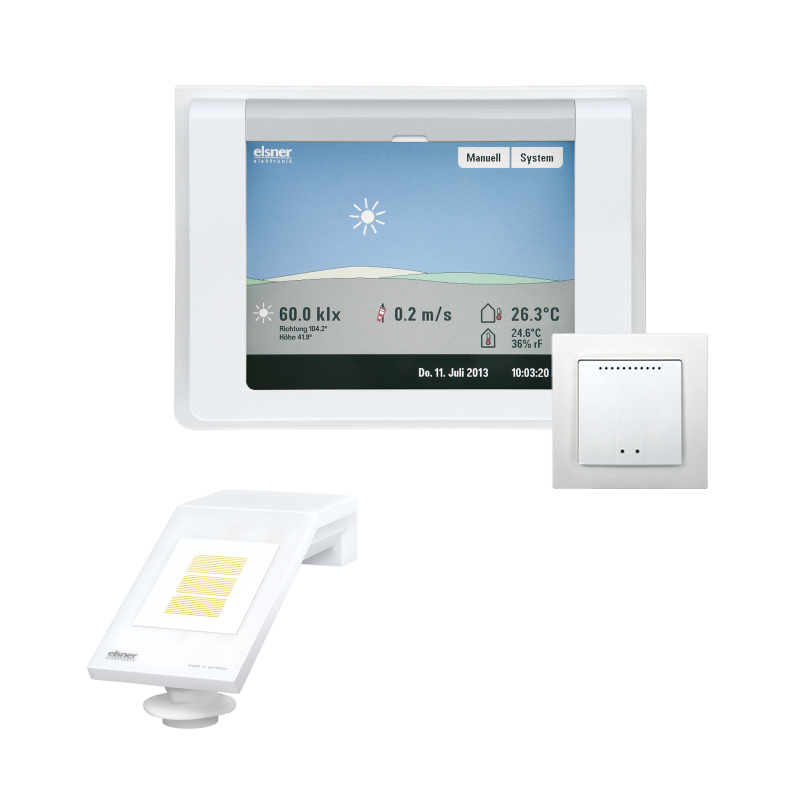

ELSNER 60122 WS1000 Color-6-white building control system for 6 230 V drives

<p/the ELSNER 60122 product, called WS1000 Color-6, represents a complete and integrated solution for the control of various building automation systems. This device is designed to manage not only shading and ventilation, but also heating and air conditioning systems.

Key Features

The WS1000 Color-6 has 6 230 V pilot outputs, making it suitable for controlling awnings, curtains, blinds and sliding doors.

Display and User Interface

The device is equipped with an 8.4-inch animated color graphic display with touch function, which allows easy and intuitive operation without the need for additional keys. Its glass and plastic case has an elegant and modern design with a “floating” look.

Security Systems and Sensors

The WS1000 Color-6 includes the ability to connect motion and smoke detectors, offering an additional level of security. In addition, it is compatible with indoor radio sensors for measuring air temperature and humidity, with wireless data transfer to the central unit.

Weather Station

The device integrates a weather station with electronic wind speed measurement technology, precipitation detection using a heated sensor and measurement of brightness and twilight using special filters. You can set the twilight detection limit to adjust lights and curtains according to your privacy needs.

Control Functionality

• Centralized control of multiple drives in a drive group using the IMSG 230 motor control unit.
• Automatic adjustment of the angle of the curtain blades according to the position of the sun, ensuring maximum brightness without direct exposure to the sun.
• 'Slat Turning' and 'Canvas Tightening' functions for curtains and awnings, respectively.
• 4 multifunctional outputs for heating, cooling, supply air, alarm systems, lighting, eaves heating or dimmers.
• 4 multifunctional inputs for motion detectors, smoke detectors, climate control detectors, closed contacts (for sliding doors) or pulses for automatic resets.

Personalization and Security

All drives and units can be named individually (for example, “East Tent”). The automatic reset function returns the drives and devices to automatic mode after a manual operation, with the possibility of setting a time delay or a fixed time point. The settings menu can be protected with an access code to prevent unauthorized changes.

Other Features

• Connect up to 10 external manual buttons.
• Manual operation of all devices connected using the Remo 8 remote control (available separately).
• Picture frame function via SD card.
• Adjustable display language (English, German, French, Italian).
• Dimmer the screen in sleep mode to save energy and not disturb the room environment.
