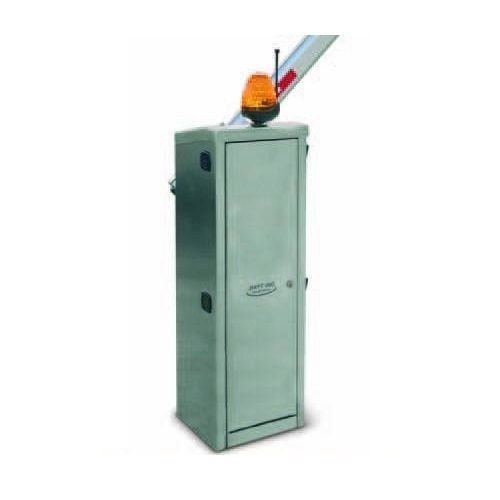

9813DXL Bayt 980 Hydraulic Road Barrier Right Fadini 9813dxl

• Hydraulics automation with hydraulic technology, stands out for its its marked reliability in high intensity installations work: car parks, private entrances, public passages and areas industrial, residential and urban. Robust and safe in movement. Braking during opening and closing of the boom movement. Not fears low or high temperatures. • Robust reinforced structure in anti-corrosion painted steel. Available with painted upper (RAL 2002 Blood Orange and Grey textured metallic) or in stainless steel. Right version or left, with different speeds. Anodized aluminum rod, of oval section and without edges. • Flexible wide range of versions and accessories to meet every need requirement: pole with hedge, poles with integrated LED lights (high visibility night and energy saving), with joint (installations with ceiling). • Quick and easy installation with the ELPRO 980 electronic programmer positioned in the upper part of the shaft, in a dedicated space. Several Master/Salve programming and management logics of two opposing barriers. • Manual also available in the manual movement version with rods with a maximum length of 6.40 m (without hedge). Ideal for places where it is not possible to reach with electricity. Power supply voltage 230 Vac - 50 Hz Power consumption 510 W Current absorbed 2.4 A Power output 0.37 kW (0.5 HP) Operating temperature -20 °C +80 °C (*) Operating pressure 20 atm Maximum pressure 40 atm IP 67 protection rating Type of oil Oil FADINI - cod. 708L Tank volume 2.5 l Shaft weight (without shaft) 75 kg Upper color RAL 2002 Blood Orange/ Textured metallic grey Very intensive use frequency Each BAYT 980 item code is composed as follows: • Cabinet base in satin AISI 304 stainless steel with door that can be opened with a coded key. • COS 982 Control Unit-Piston Group - 230V power supply. • ELPRO 980 series electronic programmer. • Line switch with mandatory disconnect and earthed power cable. • Connection for R532 aluminum rod. • Anchor plate with anchor bolts and M14 fixing nuts - INOX - • n° 1 external BLUE LED. N.B: shaft and knee-high not included; consult the appropriate section of the catalogue.
