INTESIS INSTCMBG0080000 BACnet IP and MS/TP client or Modbus TCP and RTU master on ST Cloud - 8 devices

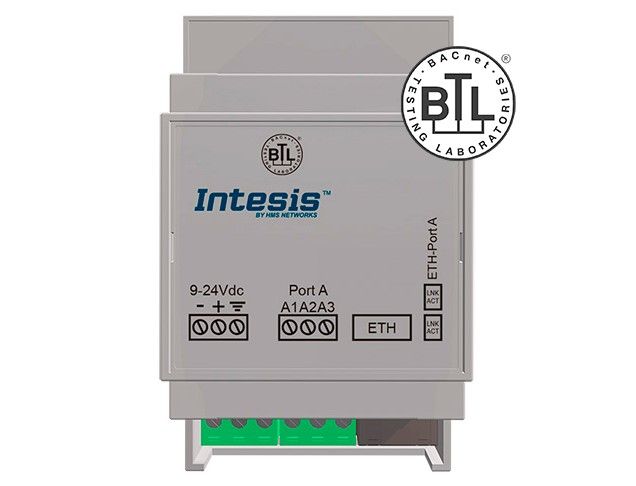

The Inthesis ST Cloud Control gateway with ORDER code INSTCMBG0080000 is a cloud-based bidirectional solution for monitoring and controlling BACnet or Modbus devices. This device allows the integration of up to 8 devices, with the possibility of using up to 12 widgets per device. Widgets can be shared or divided between devices connected to the same gateway.

Supported Protocols

The gateway supports both BACnet/IP and BACnet MS/TP protocols, as well as both Modbus TCP and Modbus RTU, allowing these different communication technologies to be managed simultaneously.

User Interface

The gateway interface features easy-to-use, self-generated, end-user-oriented web dashboards. In addition, a native app is available for Android and iOS platforms, allowing for efficient remote control and monitoring.

Configuration and Updates

The gateway is configured using the Inthesis MAPS PC-based configuration tool. The configuration can be done through the gateway's IP (Console) port. The updates are simple and automatic, always guaranteeing the most recent version of the software.

Key Features

• Integration of up to 8 devices with up to 12 widgets per device.
• Support for BACnet/IP, BACnet MS/TP, Modbus TCP and Modbus RTU.
• Self-generated web dashboards and apps for Android and iOS.
• Configuration via Inthesis MAPS and IP port (Console).
• Automatic updates.
• Creation of custom widgets (for example Booleans, Operating Modes, Dimmers, Analog Values, Error Signals, etc.) and mapping with BACnet objects or Modbus registers.

This gateway is ideal for simplifying the integration process, allowing you to create projects with predefined templates, configure the necessary parameters, enable the desired signals and verify the communication between the gateway and the system.
