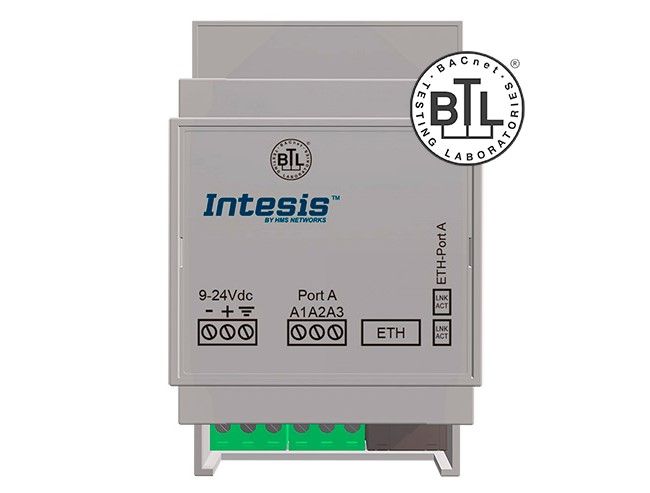

INTESIS INSTCMBG0040000 BACnet IP and MS/TP client or Modbus TCP and RTU master on ST Cloud - 4 devices

Inthesis ST Cloud Control Gateway - INSTCMBG0040000

The Inthesis ST Cloud Control gateway is a bidirectional cloud solution designed to monitor and control BACnet or Modbus devices, both through a web-based dashboard and through a native application for Android and iOS.

Supported Protocols

This gateway simultaneously supports BACnet/IP and BACnet MS/TP protocols, as well as Modbus TCP and Modbus RTU.

Key Features

• Integration of up to 4 devices.
• Each device can have up to 12 widgets, which can be shared or divided between devices connected to the same gateway.
• Easy-to-use user interface, with self-generated, end-user-oriented web dashboards.
• Automatic updates to ensure maximum efficiency and security.

Configuration and Installation

<p-The gateway configuration is performed using the Inthesis MAPS PC-based configuration tool. The configuration can be done through the IP (Console) port of the gateway. The integration process is simplified thanks to predefined templates, configurable parameters, desired signals and verification of communication between the gateway and the system.

Practical Use

The gateway allows you to create projects with predefined templates, configure the necessary parameters, enable the desired signals and verify communication between the gateway and the system, reducing the complexity of the integration process.
