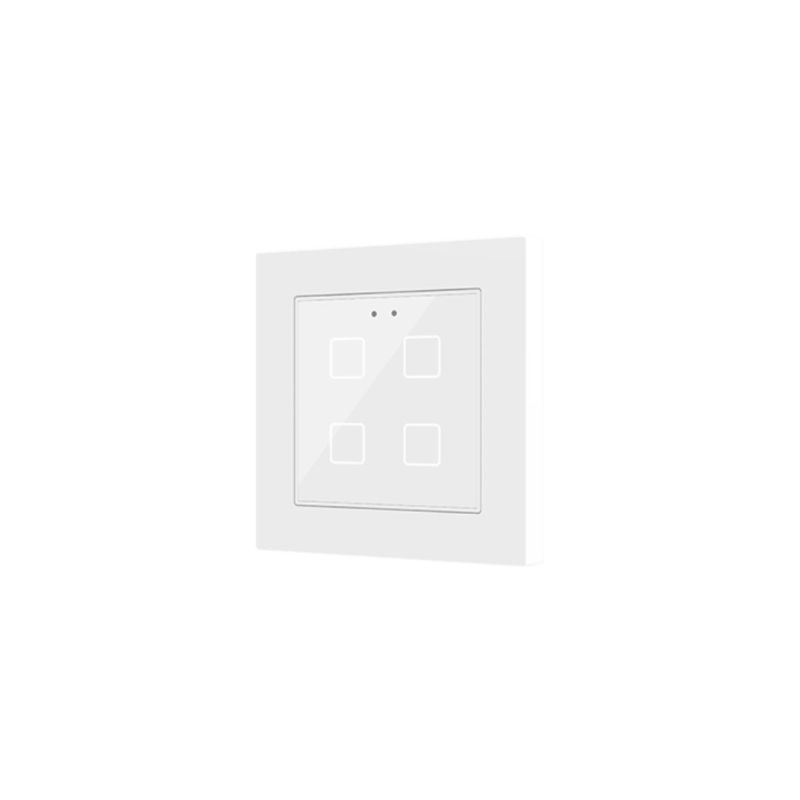

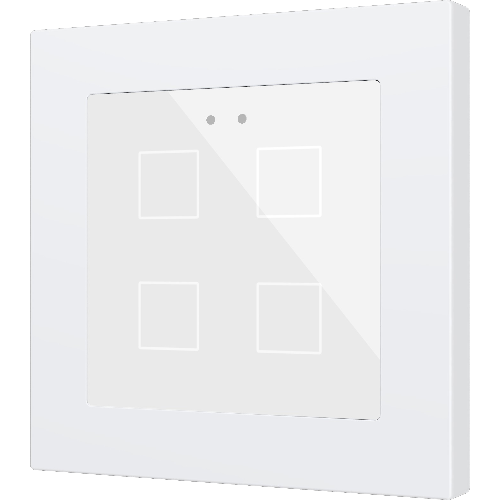

ZENNIO ZVIF55X4V2W Backlit capacitive touch switch (55 x 55 mm) 4 keys, white

<p/the ZENNIO ZVIF55X4V2W product is a high-quality capacitive touch switch, designed to integrate perfectly with KNX home automation systems. This device is part of the Flat 55 family and offers a series of innovative and customizable features.

Key Features

• Printed glass touch panel, customizable through a web application.
• 4 touch areas with backlit icons that adapt to the ambient brightness and the proximity sensor.
• It incorporates a thermostat and 2 analog-digital inputs configurable as binary inputs, sensors, buttons, temperature probes or motion detectors.
• Integrated temperature sensor and brightness and proximity sensor.
• Saving data in the event of a KNX bus failure and retrieving data when restarting the KNX bus.
• Integrated KNX BCU control unit (TP1-256).

Technical Specifications

• Dimensions: 81 x 81 x 31 mm, with a 9 mm projection from the wall.
• Recessed mounting on a standard electrical box.
• Compliance with CE, UKCA, RCM directives.
• Supply voltage: 29 VDC SELV (range 21-31 VDC).
• Maximum consumption: 469.8 mW (at 29 VDC).
• Operating temperature: 0.. +55 °C.
• Operating humidity: 5.. 95%.
• Case material: PC+ABS FR V0, halogen-free.

Installation and Use

• Fix the metal plate in the square or round electrical box using the box's screws.
• Connect the KNX bus and input terminals to the back of the device.
• Insert the device into its final position and verify that the force of the clips is sufficient to secure it.

Accessories and Personalization

• Available in standard matt white, glossy white, black and silver versions, or customizable.
• Accessories included: temperature probe and motion detector.
• Customize icons and images using the Zennio Touch-MyDesign tool.
