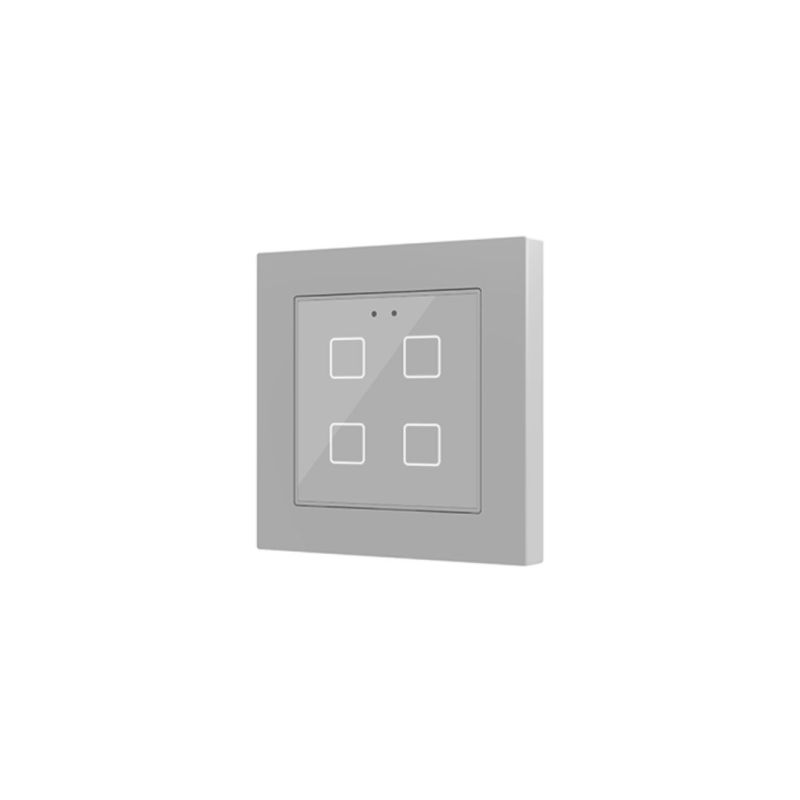

ZENNIO ZVIF55X4V2S Backlit capacitive touch switch (55 x 55 mm) 4 keys, silver

The ZENNIO ZVIF55X4V2S device belongs to the Flat 55 family of capacitive switches, characterized by a flat and customizable design. This specific model is available with 4 configurable keys.

Key Features

• Tempered glass touch panel with customizable printing through the Touch-MyDesign web application.
• 4 configurable touch areas.
• 2 analog-digital inputs configurable as binary inputs, sensors, buttons, temperature probes or motion detectors.
• Built-in thermostat.
• Brightness sensor and proximity sensor to adjust the brightness of touch areas.
• Saving data on the KNX bus in the event of a fault.
• Integrated KNX BCU control unit (TP1-256).

Technical Specifications

• Dimensions: 81 x 81 x 31 mm (protrudes 9 mm from the wall).
• Flush mounting on standard mounting box.
• Compliance with CE, UKCA, RCM directives.
• Supply voltage: 29 VDC SELV (range 21-31 VDC).
• Maximum consumption: 469.8 mW (at 29 VDC).
• Operating temperature: 0.. +55 °C.
• Operating humidity: 5.. 95%.
• Protection class: IP20, clean environment.

Installation and Use

• Secure the metal plate in the square or round mounting box using the box screws, making sure it is level.
• Connect the KNX bus and input terminals to the back of the device.
• Insert the device into its final position and verify that the force of the clips is sufficient to secure it.

accessories

• Temperature probe.
• Motion detector.
• Recessed or surface door/window contacts.
