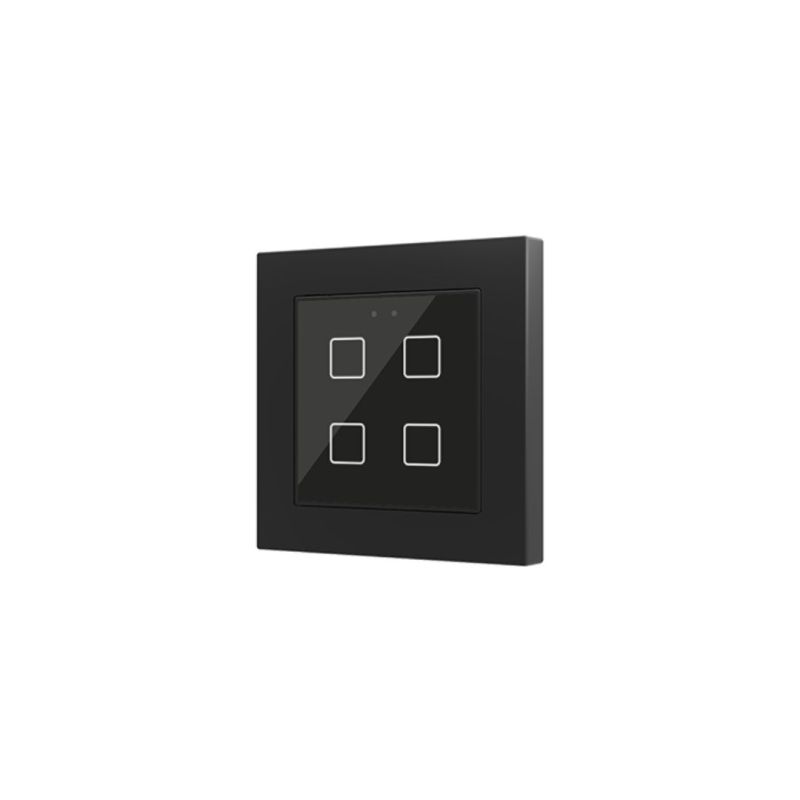

ZENNIO ZVIF55X4V2A Backlit capacitive touch switch (55 x 55 mm) 4 keys, black

Key Features

This device offers a series of innovative features, designed to meet the needs of domestic and commercial environments.

• Tempered glass touch screen with the possibility of customizing images, icons, texts or logos through a web application.
• Available in versions with 1, 2 or 4 touch areas, all with backlit icons that adapt to the ambient brightness and the proximity sensor.
• It incorporates a thermostat and 2 analog-digital inputs configurable as binary inputs, sensors, buttons, temperature probes or motion detectors.
• Integrated brightness and proximity sensor.
• Saving data in the event of a KNX bus failure and retrieving data when restarting the KNX bus according to the parameterization.

Technical Specifications

The following technical details provide a comprehensive view of the device's capabilities:

• Dimensions: 81 x 81 x 31 mm, with a 9 mm projection from the wall.
• Flush mounting on standard flush mounting box.
• Supply voltage: 29 VDC SELV (range 21-31 VDC).
• Maximum consumption: 469.8 mW (at 29 VDC) for the ZVIF4V2 model.
• Operating temperature: 0.. +55 °C.
• Operating humidity: 5.. 95%.
• Case material: PC+ABS FR V0 halogen free.

Installation and Use

Installing the device is relatively simple:

• Secure the metal plate into the square or round recessed box using the box's bolts, making sure it's level.
• Connect the KNX bus and input terminals to the back of the device.
• Insert the device into its final position and verify that the force of the clips is sufficient to secure it.

The device complies with CE, UKCA and RCM directives.
