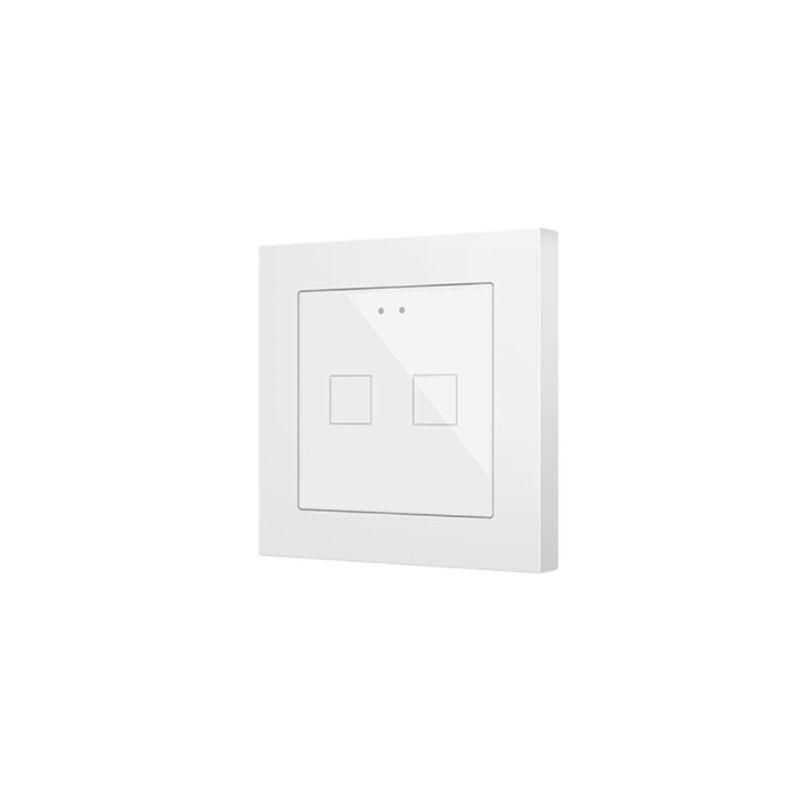

ZENNIO ZVIF55X2V2W Backlit capacitive touch switch (55 x 55 mm) 2 keys, white

<p/the ZENNIO ZVIF55X2V2W product belongs to the Flat 55 v2 family, characterized by a flat design and cutting-edge technology for controlling electrical installations.

Key Features

This device is a 2-button capacitive switch with a screen-printed glass panel, customizable through the Zennio Touch-MyDesign web application. The keys are equipped with backlighting that adapts to the ambient brightness and the proximity sensor.

Technical Features

• Screen-printed glass panel with the possibility of customizing images, icons, texts or logos.
• 2 touch areas with backlight to indicate status.
• Brightness and proximity sensor.
• Integrated thermostat and 2 analog-digital inputs configurable as binary inputs, sensors, buttons, temperature probes or motion detectors.
• Internal temperature sensor with a measurement range of -30 to +90 °C and a resolution of 0.1 °C.

Installation and Compatibility

The installation takes place in a standard recessed box with dimensions 55 x 55 mm, compatible with Zennio ZS55 frames. The device is fixed with a fixing clip and does not require an external power supply.

Technical Specifications

• Supply voltage: 21-31 VDC SELV (typical 29 VDC).
• Maximum consumption: 16.2 mA @ 29 VDC (469.8 mW).
• Operating temperature: 0.. +55 °C.
• Operating humidity: 5.. 95%.
• Case material: PC+ABS FR V0 halogen free.
• Dimensions: 81 x 81 x 31 mm (protrudes 9 mm from the wall).
• Protection class: IP20, clean environment.

Compliance and Security

The device complies with CE, UKCA, RCM directives and complies with international standards.
