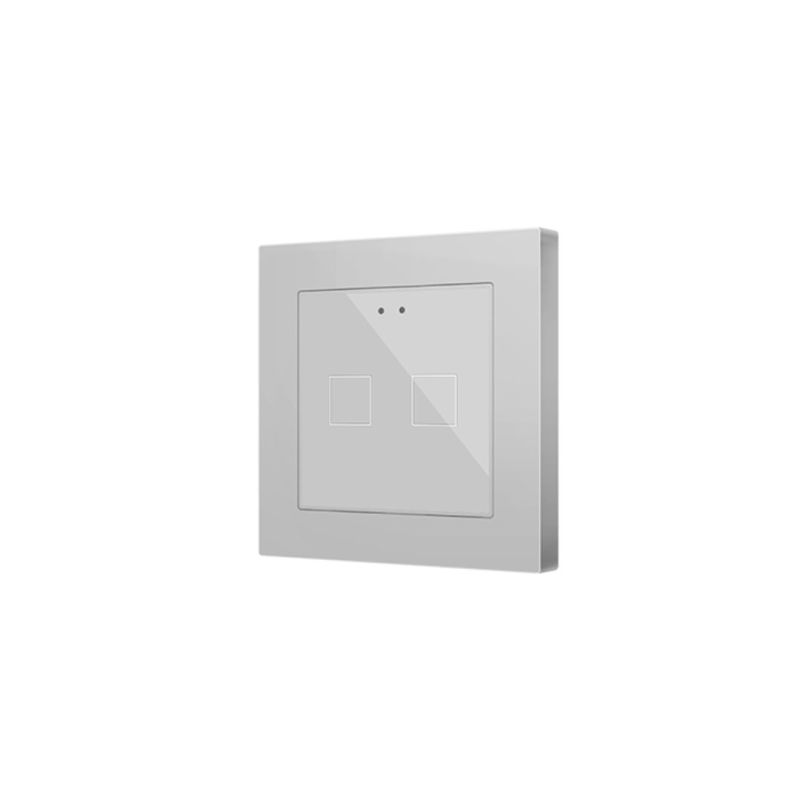

ZENNIO ZVIF55X2V2S Backlit capacitive touch switch (55 x 55 mm) 2 keys, silver

Key Features

This device is characterized by a tempered glass touch panel that can be customized through a web application, allowing you to insert images, icons, texts or logos according to specific needs.

Touch panel

• 2 customizable touch areas
• Backlighting of the touch areas to indicate the status, adaptable to the ambient brightness and the proximity sensor

Integrated Functionality

• Integrated thermostat
• 2 analog-digital inputs configurable as binary inputs, sensors, buttons, temperature probes or motion detectors

Sensor and Power Supply

• Brightness and proximity sensor
• KNX power supply: 29 VDC (typical), voltage range 21-31 VDC
• Maximum consumption: 12.2 mA @ 29 VDC (typical)

Installation and Dimensions

• Recessed installation on a square or round wall box
• Dimensions: 81 x 81 x 31 mm, 9 mm projection from the wall
• Compatible with Zennio ZS55 frames

Environmental and Safety Features

• Operating temperature: 0.. +55 °C
• Storage temperature: -20.. +55 °C
• Operating humidity: 5.. 95%
• Protection class: IP20, clean environment
• Case material: PC+ABS FR V0, halogen-free

Other Features

• Saving data in the event of a KNX bus failure
• Restoring data when restarting the KNX bus
• Operation indicator: programming LED (red)
