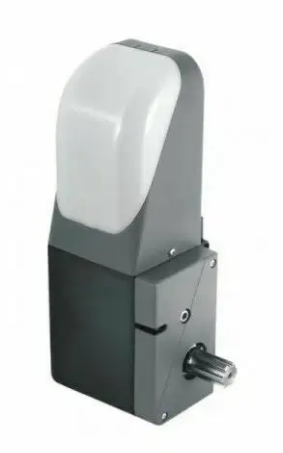

GIBIDI 50300 AUTOBOX 3000 230V Irrev Operator. Counterweight Overhead Doors
- MT Code
- GBD_50300
- Manufacturer Code
- 50300
- Brand
- GIBIDI
![extra sconto di benvenuto](https://images.ctfassets.net/g6z2so3d6429/1nCII0xdbZgmEJPENaWasr/e37d4000d07fb07137d1d55247893c74/Benvenuto2024_.jpg?w=540&fm=webp&q=80)
Description
EASY TO INSTALL
Thanks to the door assembly kit complete with all accessories. The integrated motor and fenders are pre-assembled
. QUIET AND FAST
AUTOBOX is built with gears made entirely of treated steel and bronze-aluminum alloy, assembled and tested in all its functions. In the 24Vdc version, the speed is adjustable with a soft stop function
. TECHNOLOGICAL AND SAFE
Only high-quality materials, special gear treatments and motors tested to last a long time. Integrated courtesy light and integrated anti-crush system
. In addition, it is possible to connect safety devices as required by the EN12453 standard.
A COMPLETE AND RELIABLE RANGE
The different types of installation kits allow you to find a solution for any type of door
. Use: INTENSIVE
Frequency of use: 40%
Motor supply: 24 Vdc
Absorbed power: 100W Degree of protection:
IP40 Max. torque:
250 Nm Shaft rotation speed:
5.6°/s Force adjustment: YES Max. leaf area:
7 sqm Operating temperature: -20°C +60°C On-board courtesy light: SI
Encoder/Finecorsa
:
FINECORSA A/C Operator weight: 8.6
Kg
Data Sheet
Codice Produttore | 50300 |
---|---|
Brand | GIBIDI |
Download
AUTOBOX IT EN ES FR DE
|
1.1 MB |
