VENITEM 26.44.09 ATX3 bidirectional transceiver module without internal siren
- MT Code
- VNT_25.100.249
- Manufacturer Code
- 26.44.09
- Brand
- VENITEM
ATX3 bidirectional transceiver module without internal siren

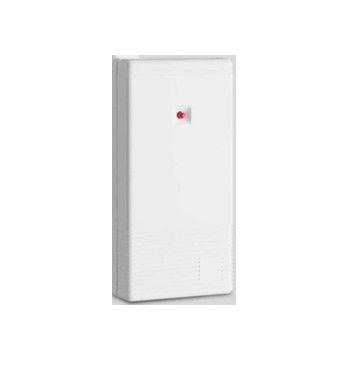

Transceiver board capable of controlling up to 8 radio sirens with the possibility of receiving and managing all information from the stored sirens. The transmitter section consists of two command inputs for the alarm, two inputs for status reporting of the on/off control panel, a button (P1) that is used, if pressed, to continuously transmit the code from Store on the sirens and that it can also be used (holding it down during the first power supply) for modify this code. The receiving section, on the other hand, consists of a 7-segment display, 4 signal LEDs, 2 open-collector outputs, 1 relay output (NC) and from the P2 button. The display allows you to see from 1 to 8 which siren has reported a problem. The 3 surface-mounted LEDs allow you to view the type of anomaly present on the sirens: tamper, failure supervision and low battery level. The red LED that comes out of the container brings together all these signals. The tamper LED is reset when the control unit is inserted, while the other two when the batteries are restored or of the radio broadcast. If there are more sirens with anomalies, the display starts to cycle, displaying the number of the siren for 2 seconds, while the 3 LEDs indicate the type of anomaly received. The P2 button is used to enter programming, memorize siren codes and exit
programmingCodice Produttore | 26.44.09 |
---|---|
Brand | VENITEM |
MA MR ATX3 00 04 Manuale ATX3 rev4
|
307.2 kB |
