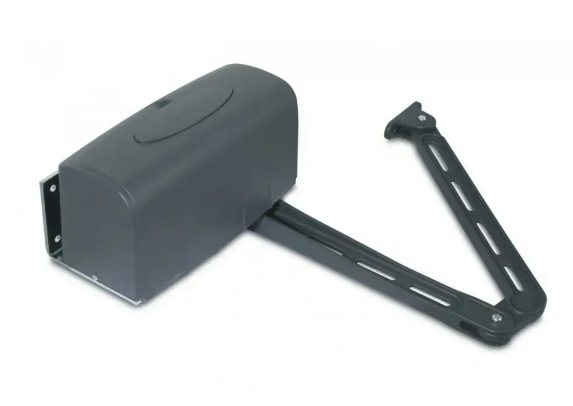

GIBIDI 30524 ART 5024 24V Articulated Arm Operator For Gates
- MT Code
- GBD_30524
- Manufacturer Code
- 30524
- Brand
- GIBIDI
Description
With window opening and closing, 230Vac and
24Vdc electromechanical operators with an articulated arm, dedicated to medium-sized and weighted swing gates. Suitable for both residential and intensive use.
EASY TO INSTALL
Thanks to the special fixing plate, it is fixed quickly without the need for welding, integrated and pre-wired windows.
QUIET AND FAST
Extremely quiet thanks to the use of selected materials and careful gear finishes. In the 24Vdc version, it is possible to adjust the opening speed.
TECHNOLOGICAL AND SAFE
ART is made entirely of steel and bronze-aluminum alloy, it is robust and reliable over time. Possibility to use the special wall selector with remote engine release
. A COMPLETE AND RELIABLE RANGE
Thanks to the dedicated accessories, it is possible to install ART even in the presence of large pillars and obtain door openings of up to 130°
. Use: INTENSIVE
Frequency of use: 40%
Motor power supply: 24 Vdc
Absorbed power: 100W Degree of protection:
IP53 Shaft rotation speed:
5.6°/s Max. thrust force:
250 Nm Force adjustment: ELECTRONIC
Speed adjustment: ELECTRONIC **
Max. leaf length: 3 m* Operating temperature:
-20°C +60°C Encoder/end stroke:
FINECORSA - A/C Lubrication: GBD WH-01 GREASE Operator weight:
11.1 Kg
Data Sheet
| Codice Produttore | 30524 |
|---|---|
| Brand | GIBIDI |
Download
|
ART UK DATASHEET
|
659.7 kB |
